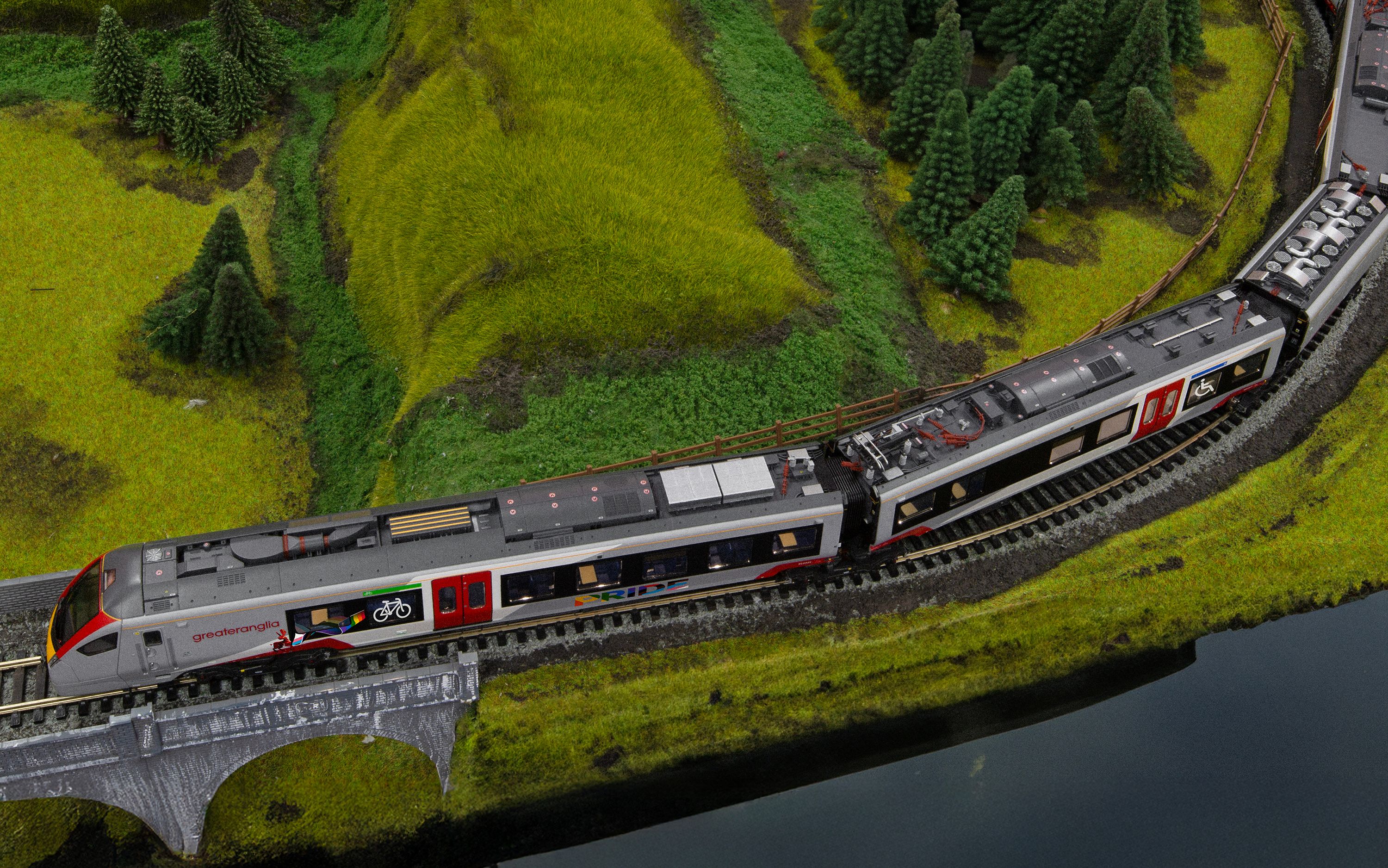

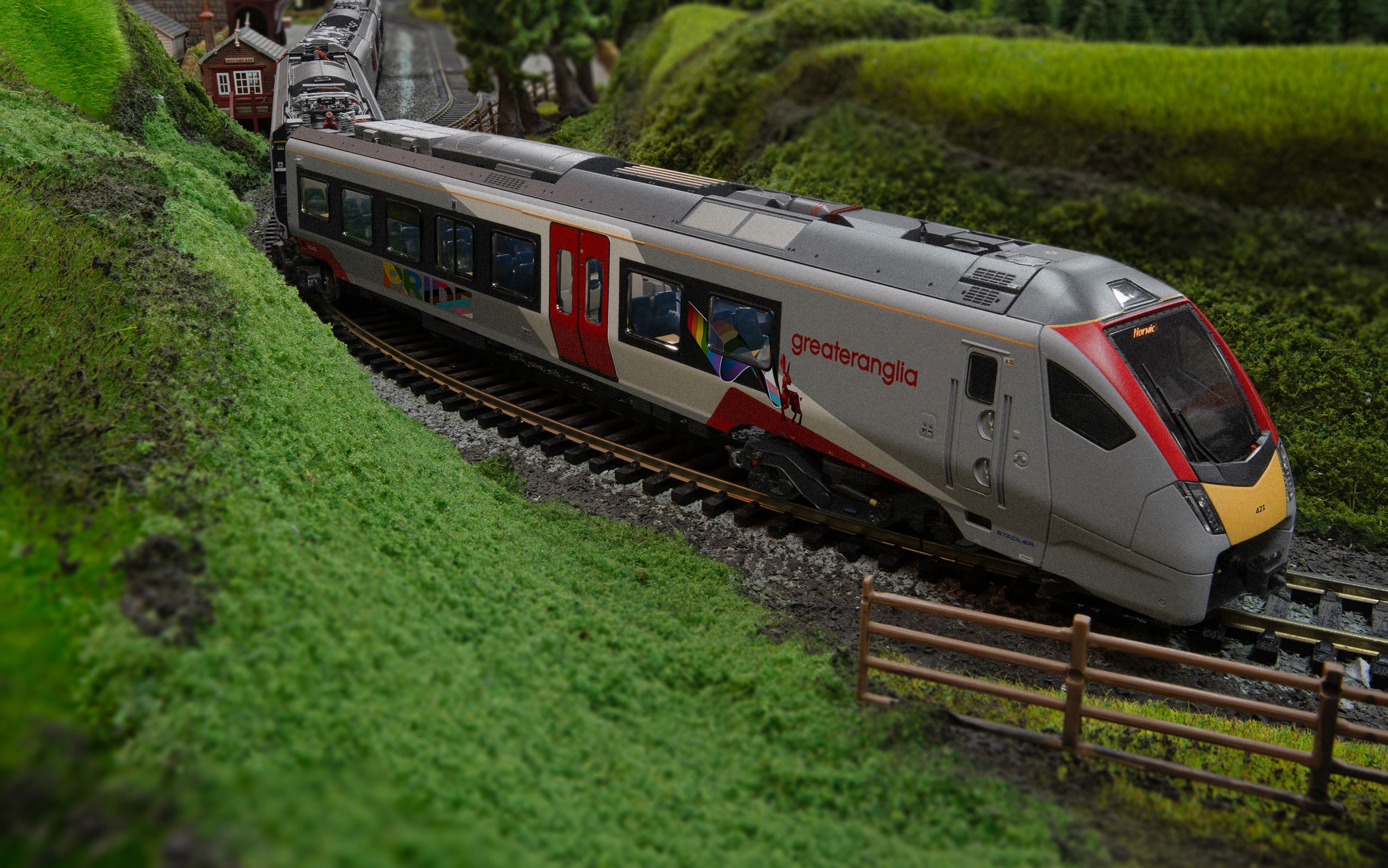

R30446 Greater Anglia - Class 755/4 'FLIRT' - 4 Car Train Pack (Pride Livery)
Product Info

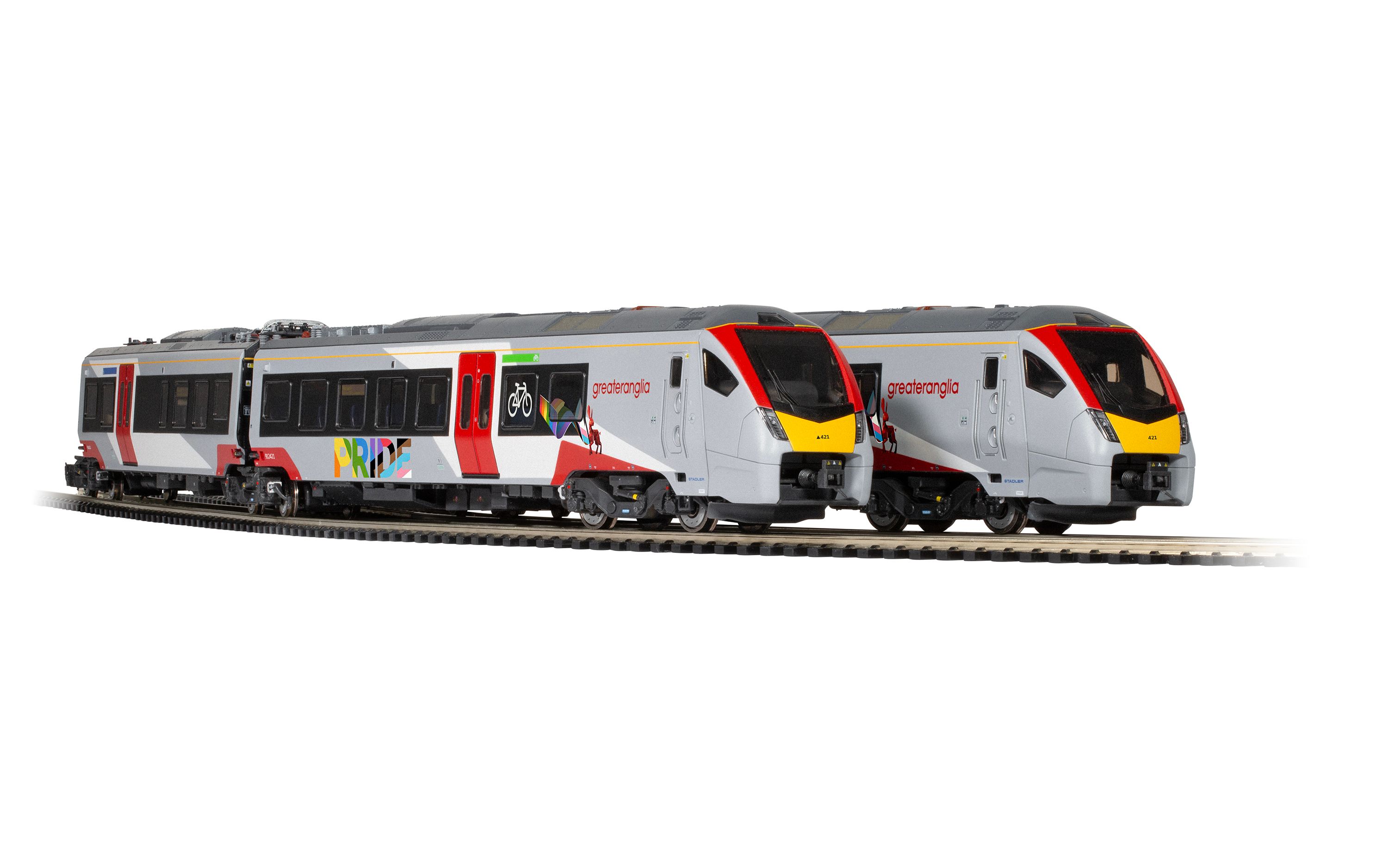

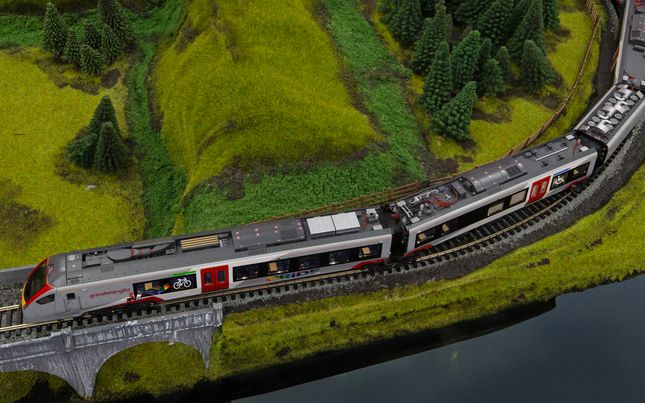

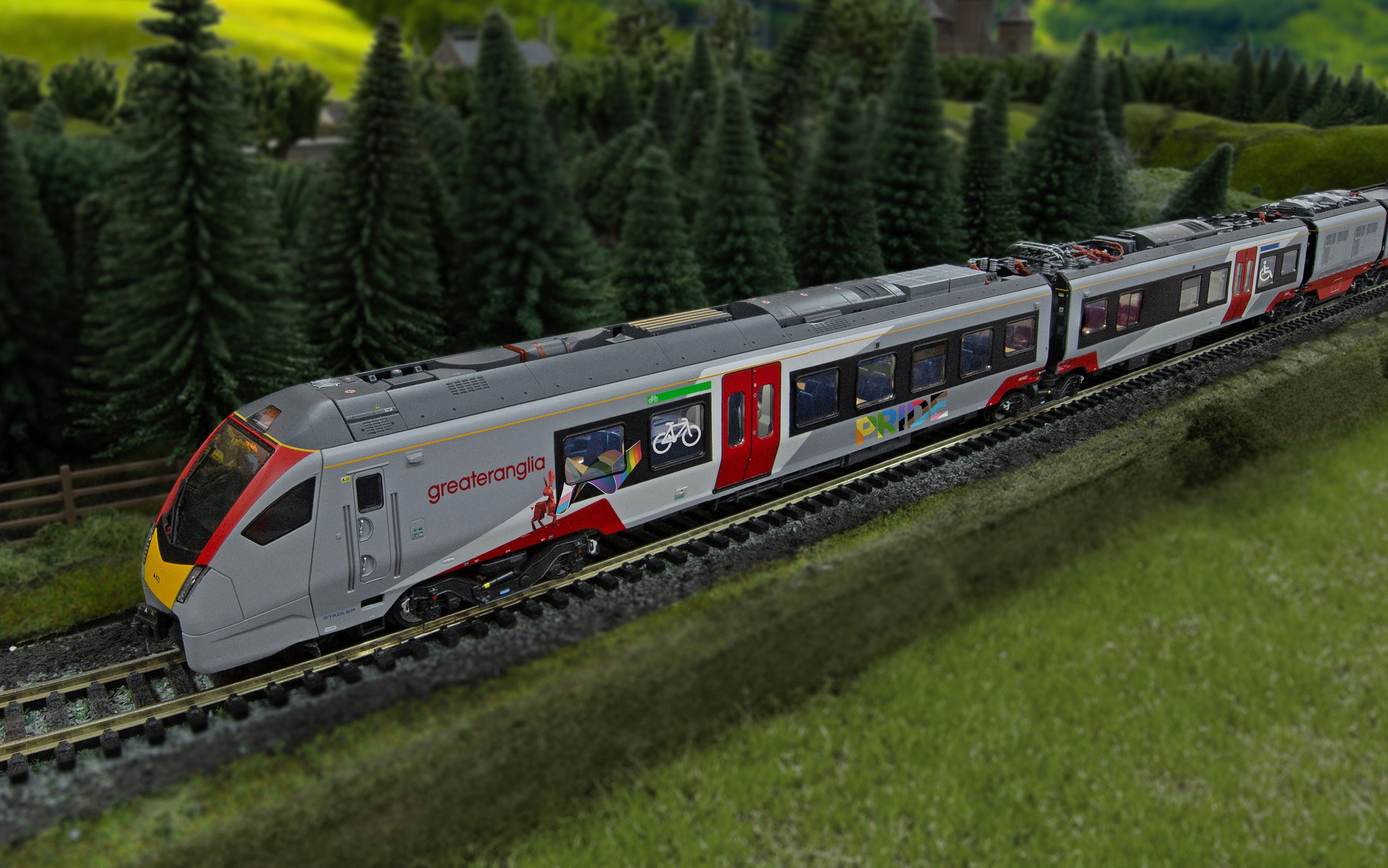

A colourful symbol of inclusivity, this attractive Class 755/4 'FLIRT' train pack features an iconic Pride livery, as seen on the real-life train that runs throughout the Greater Anglia network.
The Class 755 bi-mode multiple unit trains are built by Stadler Rail for Greater Anglia and are part of the highly configurable FLIRT modular train family, designed for greater capacity and long-distance comfort.
The Class 755 entered service on the 29th July 2019, having been delivered to Greater Anglia the previous November. On Wednesday 23rd April 2014, Greater Anglia revealed the new Pride livery Class 755.
Powered with two 5-pole motors, directional lighting, illuminated destination boards, door open lights and cab and footstep lighting, you won't miss this train as it moves around your model railway layout. It also has three 21-pin decoder sockets - a minimum of two decoders are required for DCC sound-running and an optional third decoder can be used to control the HM7000 enhanced bass speaker if fitted.
Specific to R30446

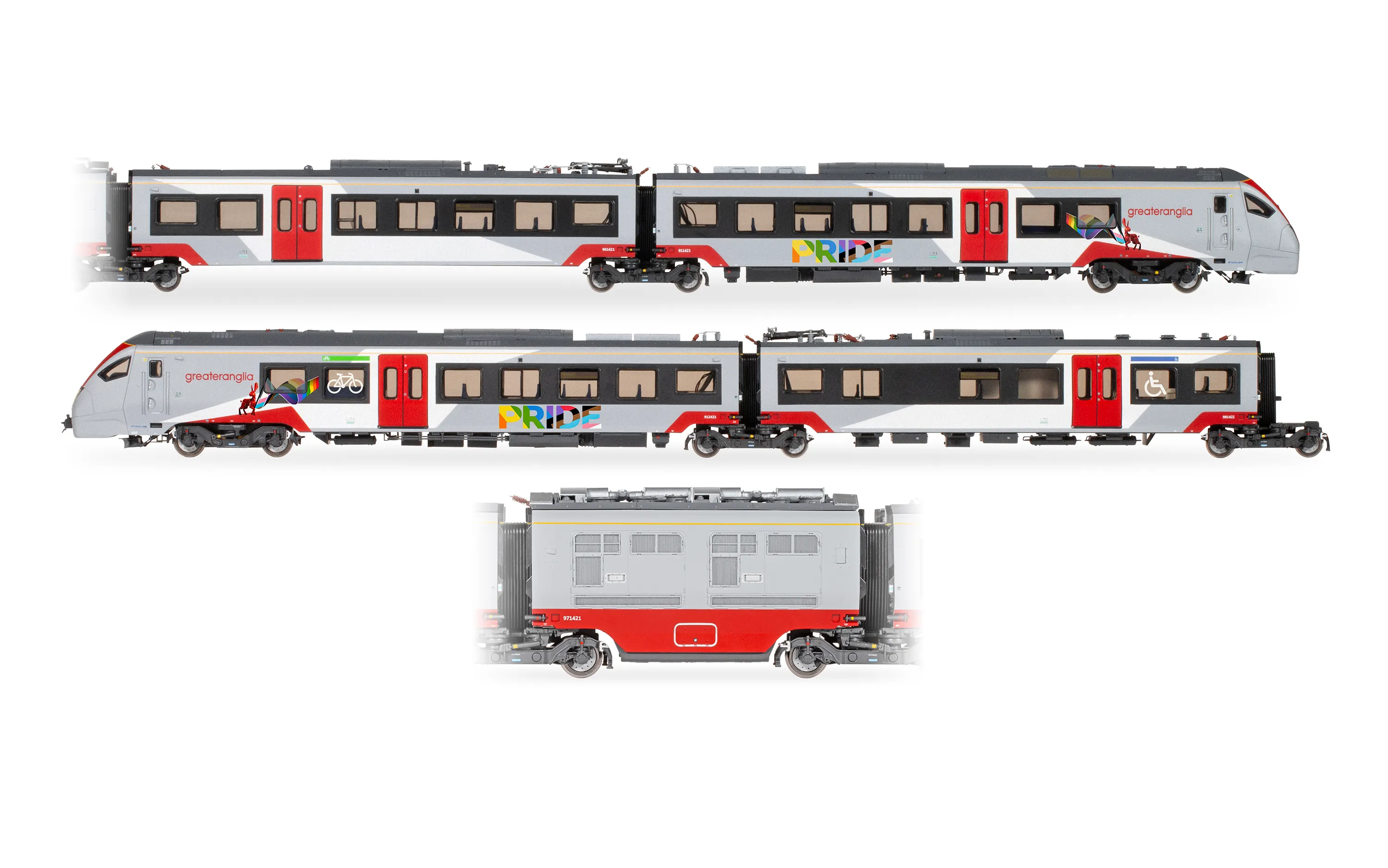

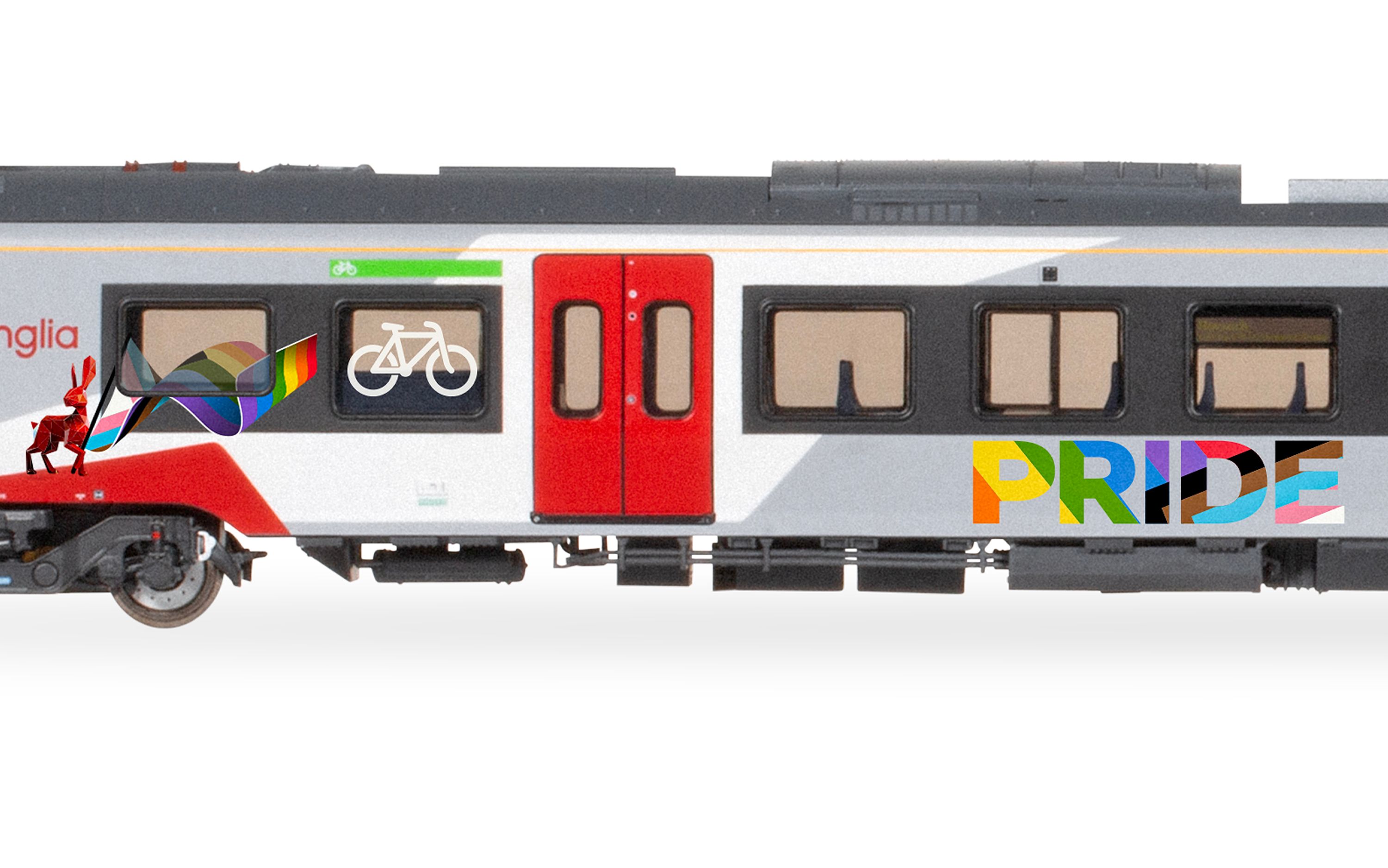

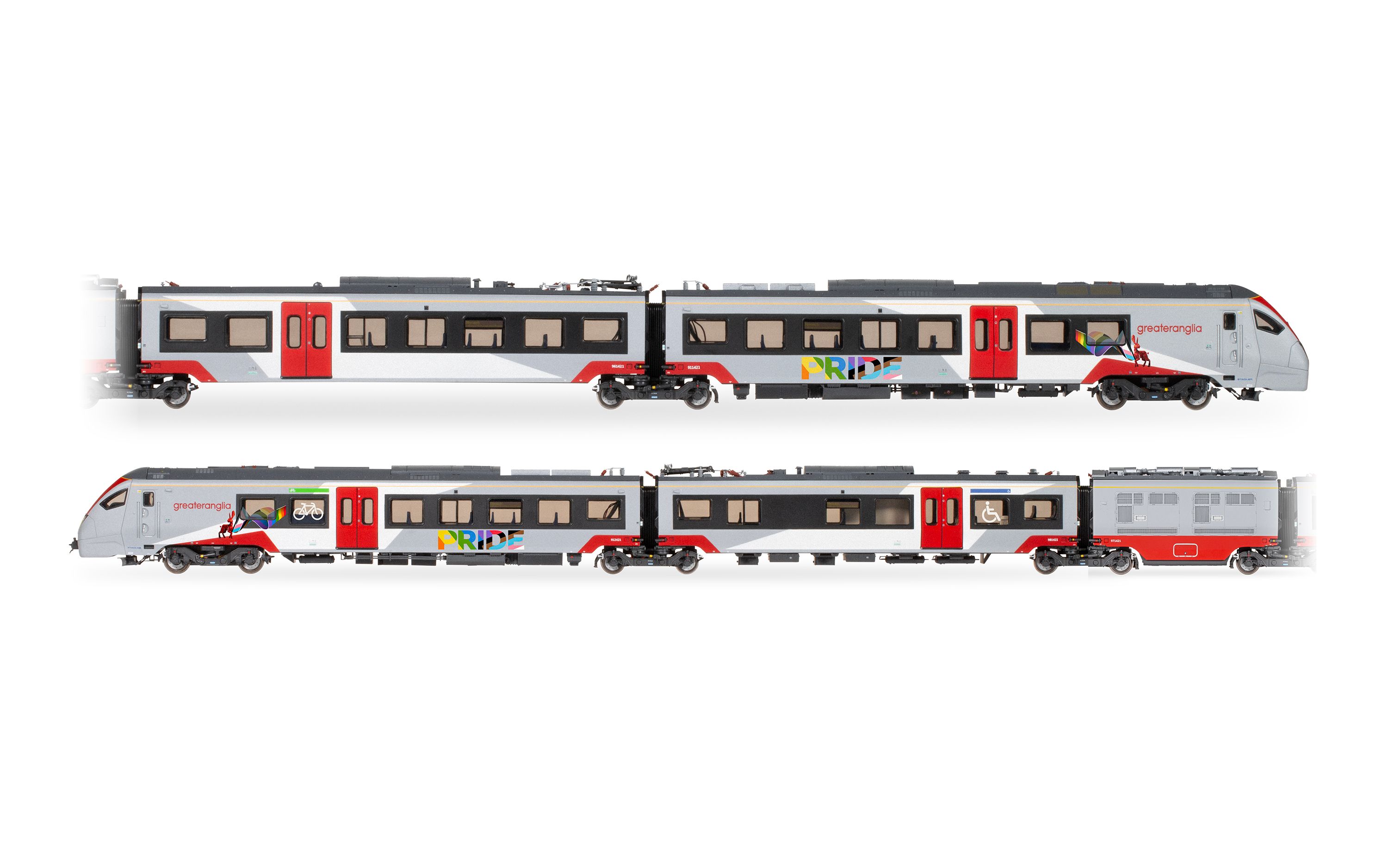

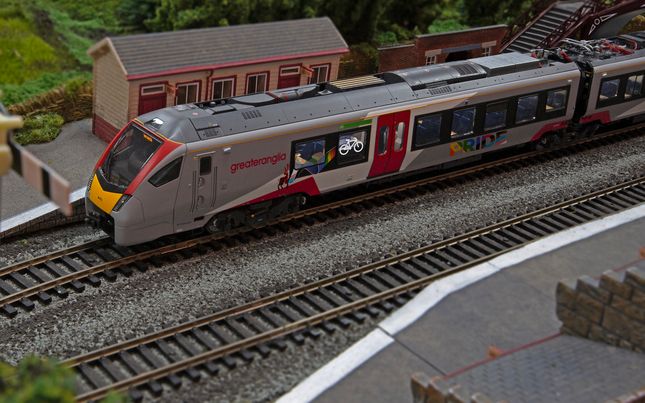

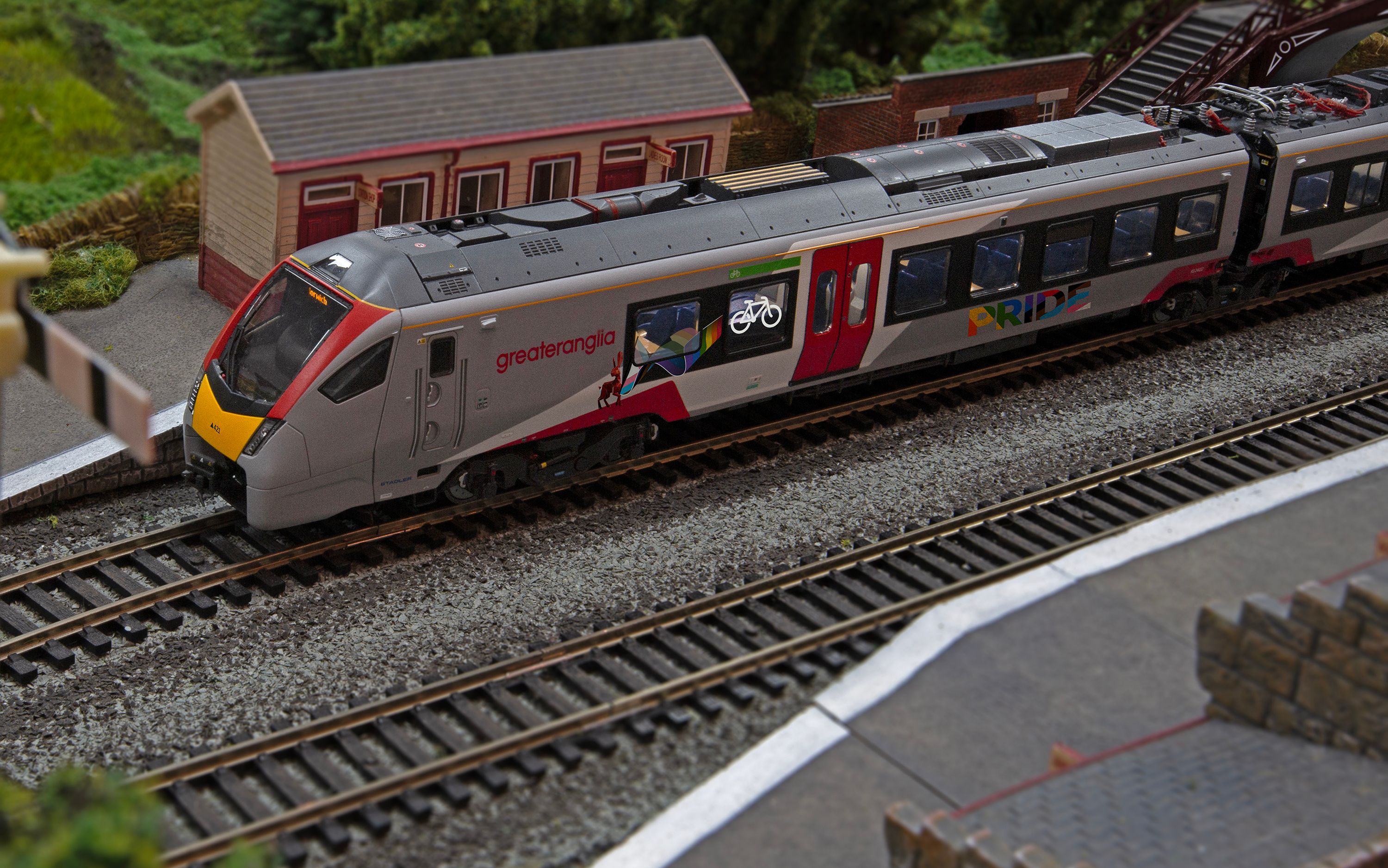

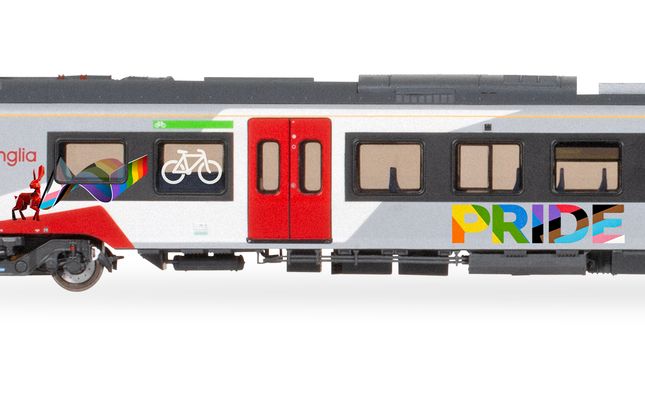

- The livery includes both Pride and transgender flags on the sides of the train

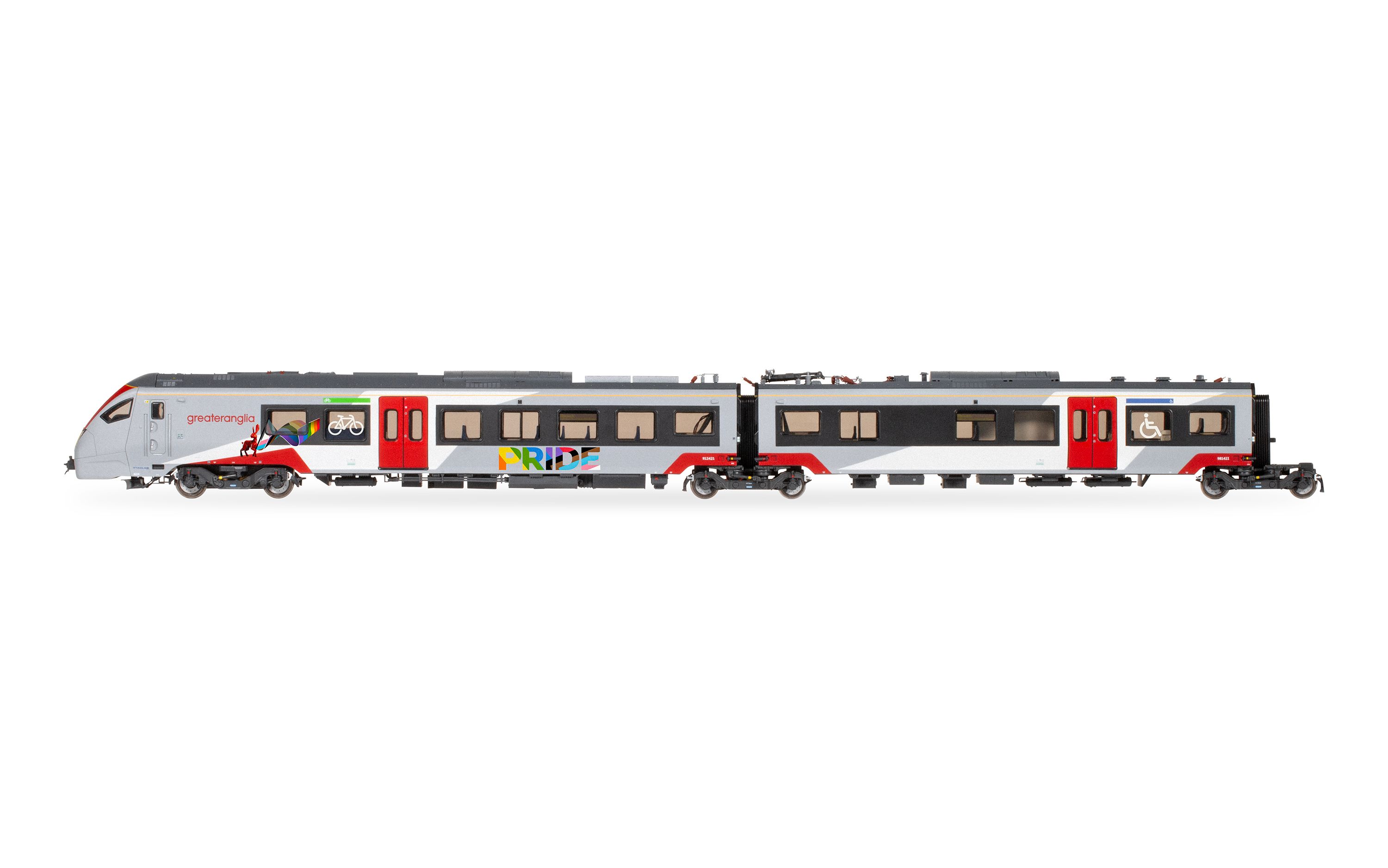

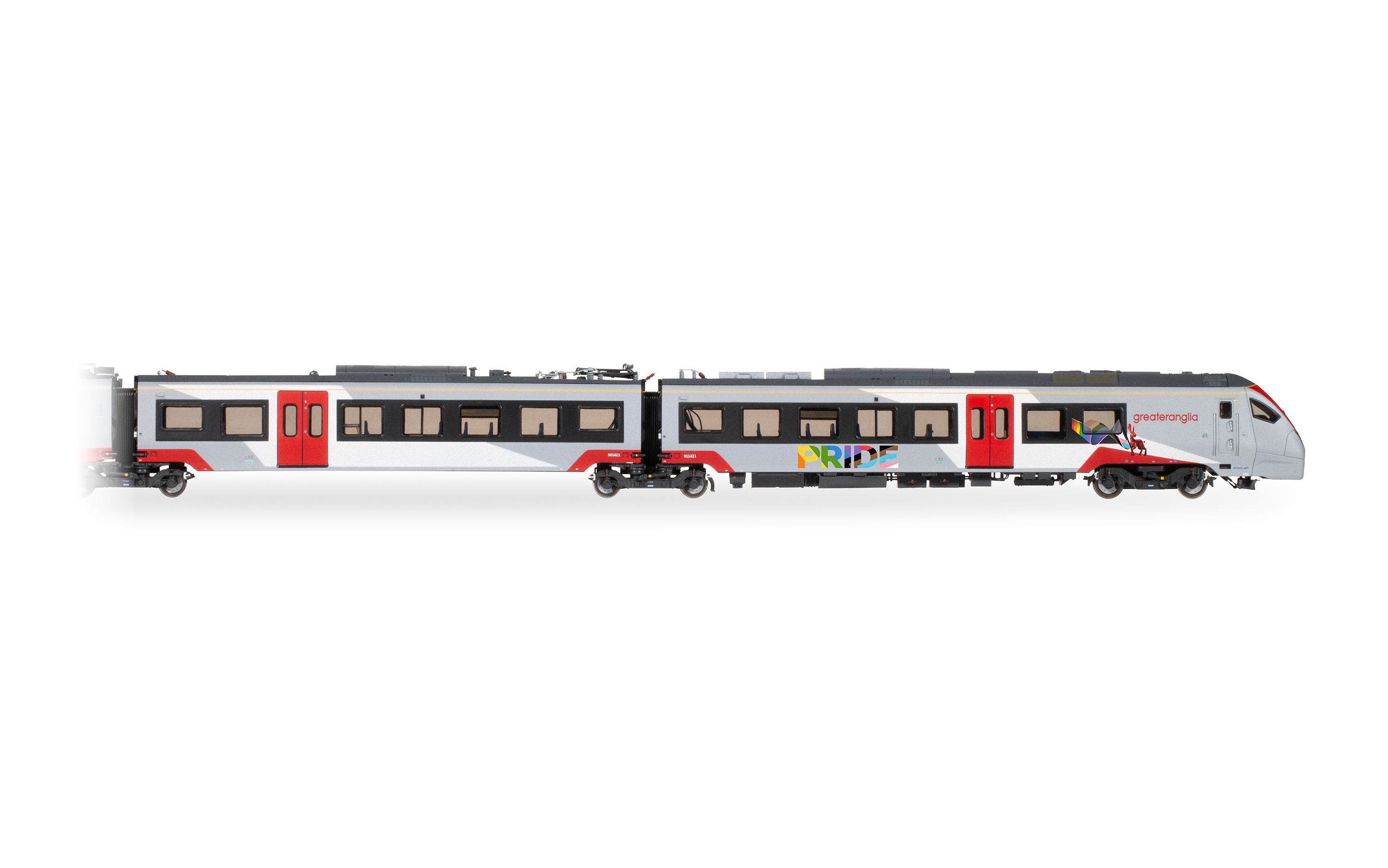

- 4-car unit
- Set number ‘755421’

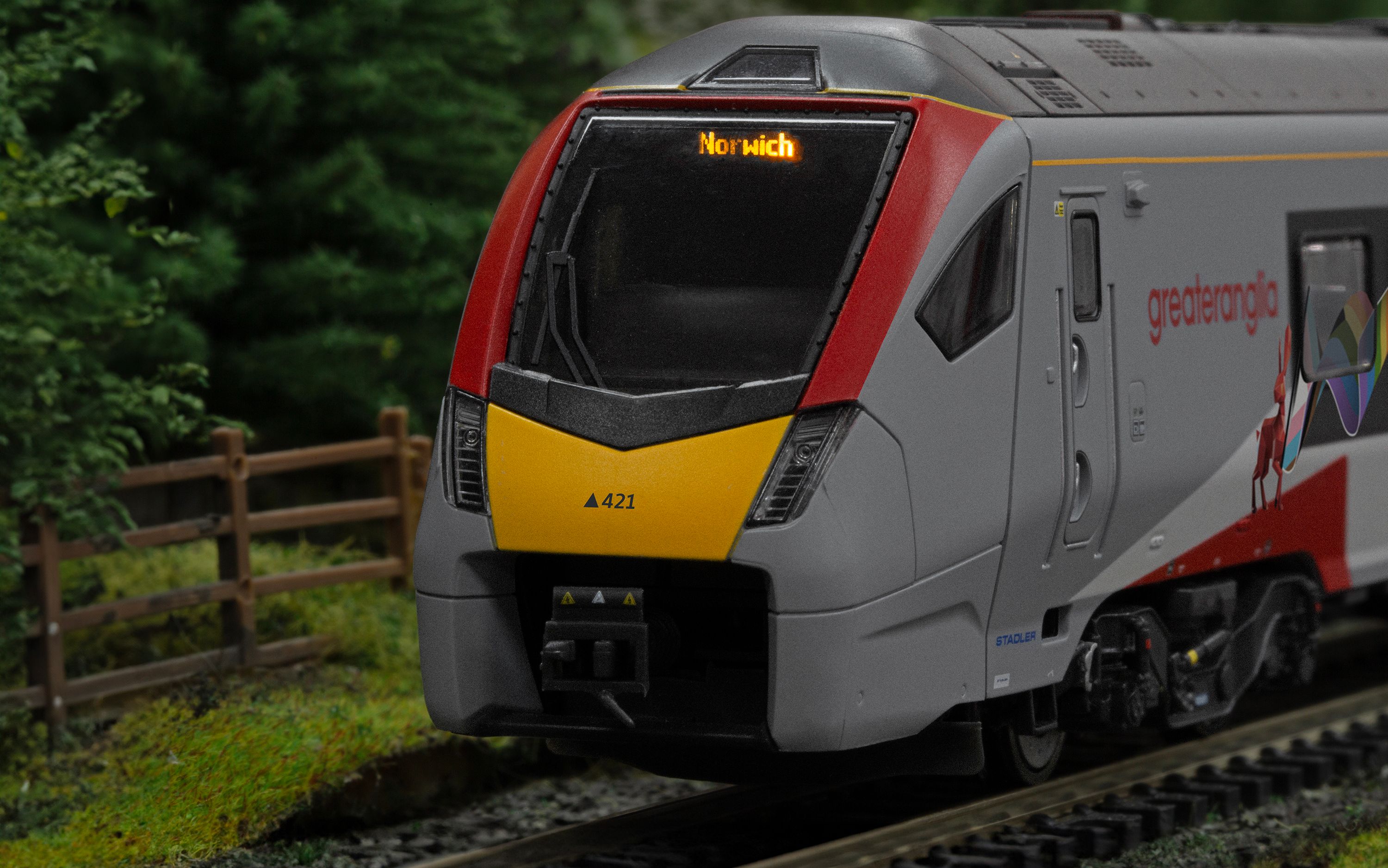

- Destination boards show ‘Norwich’

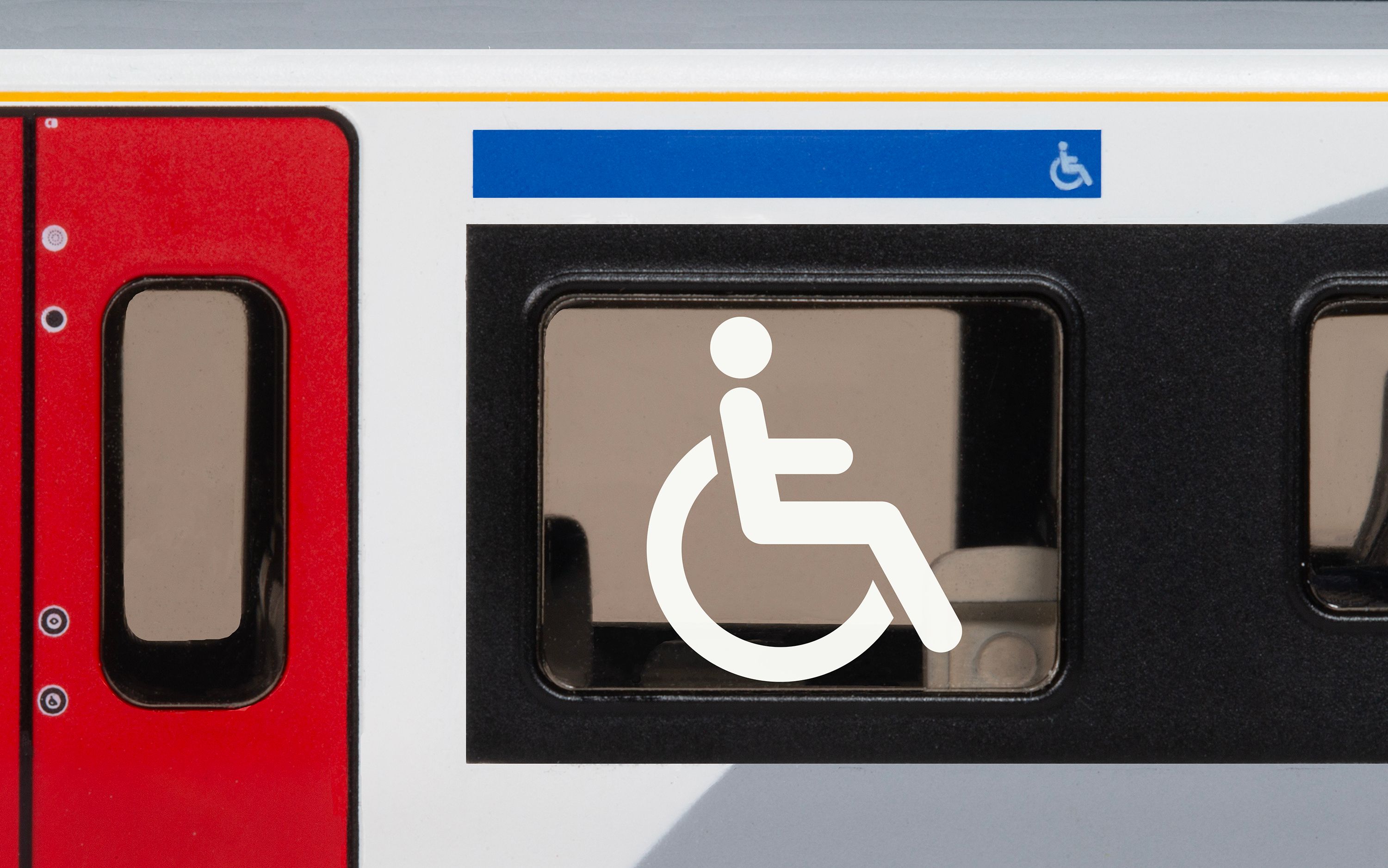

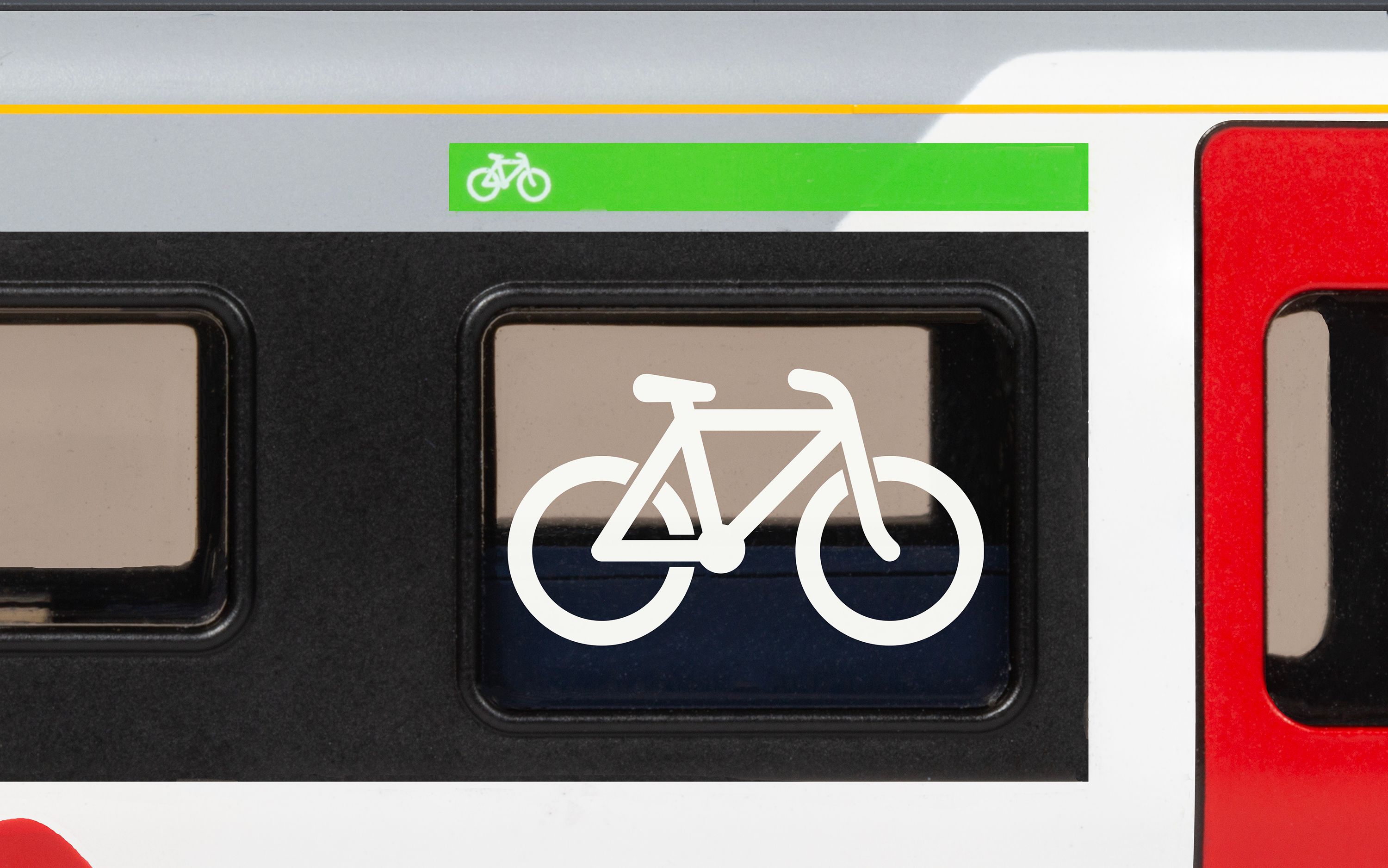

- With large bike and wheelchair symbols in the windows.
Common Class 755/4 Features

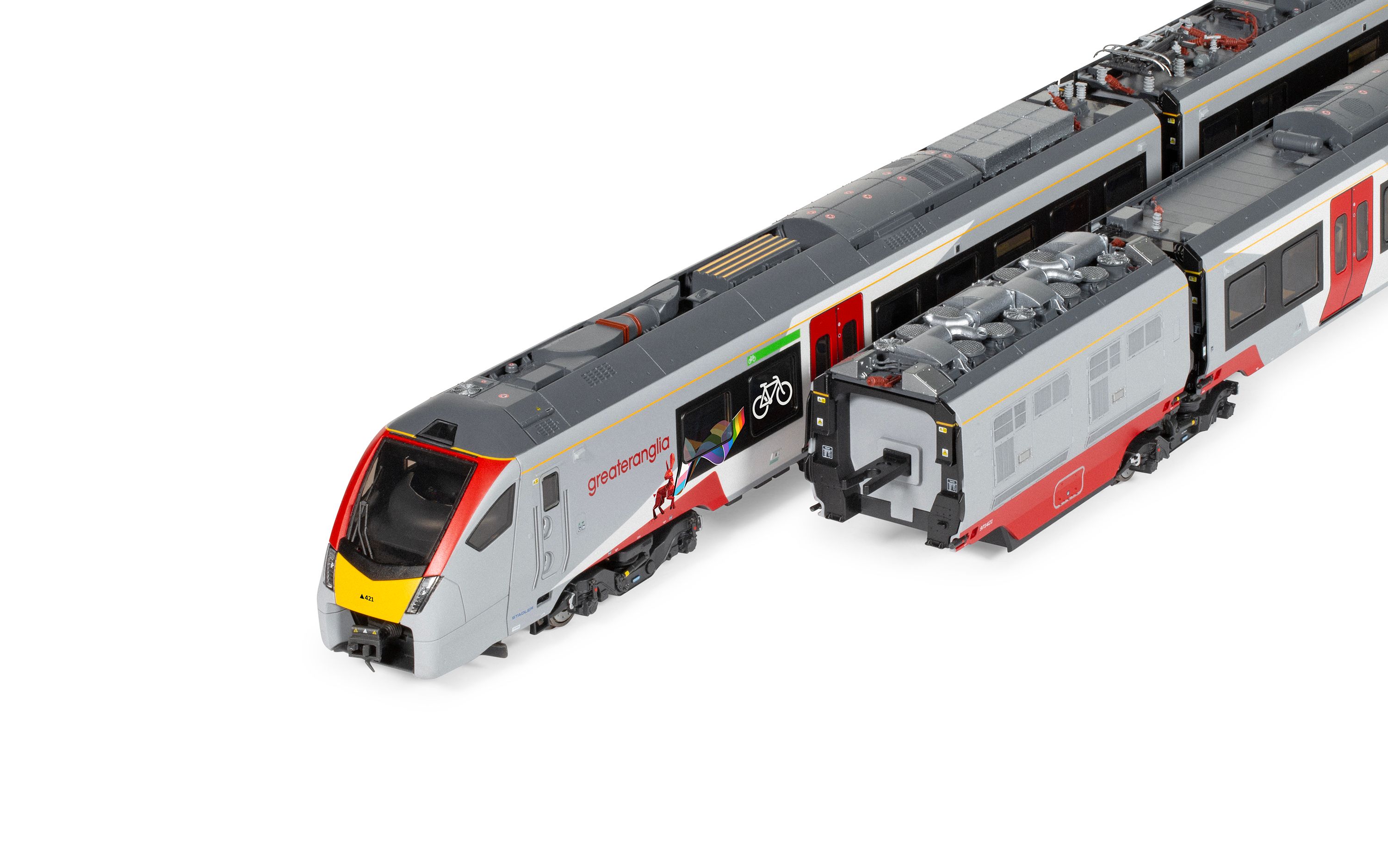

- Highly detailed 00 gauge model developed with support from Stadler and Greater Anglia who gave full access to their CAD information
- Highly detailed cab with fully decorated instrument panels
- HM7000 21-pin sound decoder compatible
- Pre-fitted sugar-cube speakers
- Compatible with the HM7000 Enhanced Bass speaker for realistic engine sounds
- Powered with two 5-pole skew-wound motors fitted with flywheels for smooth operation
- Illuminated interior and destination boards with power backup using supercapacitors for consistent lighting over track dead spots
- Illuminated headlights with night and day light control when fitted with a DCC decoder
- Illuminated door open lights. Controllable when fitted with a DCC decoder
- Illuminated cab interior lighting. Controllable when fitted with a DCC decoder
- Illuminated cab step lights. Controllable when fitted with a DCC decoder

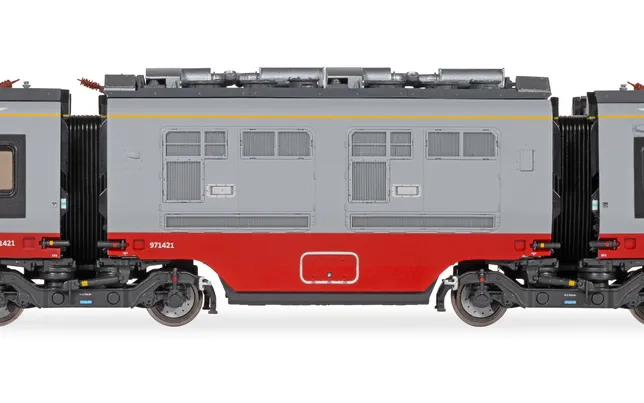

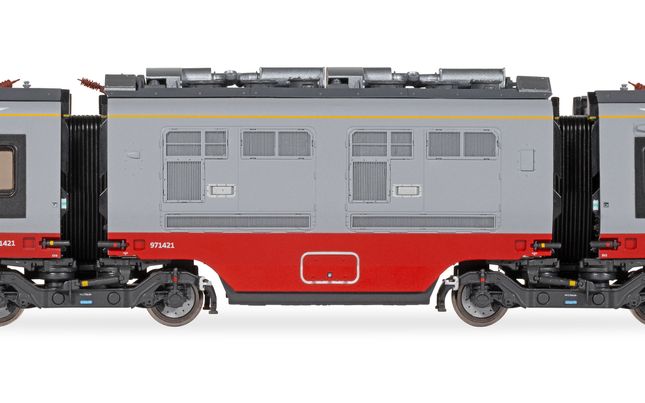

- Optional DCC socket located in the power generation car for the ultimate sound experience
- All wheel electrical pick-up.
- Brass axle bearings

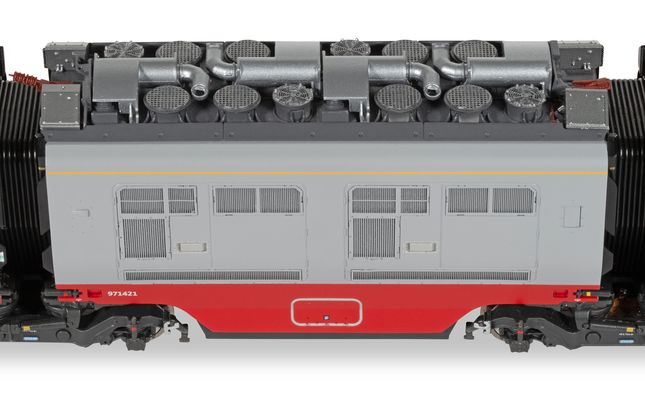

- High fidelity detail on both the underside and roof areas with an array of separately fitted parts including metal grills and photo-etched parts
- Front and rear working kinematic Scharfenberg coupler

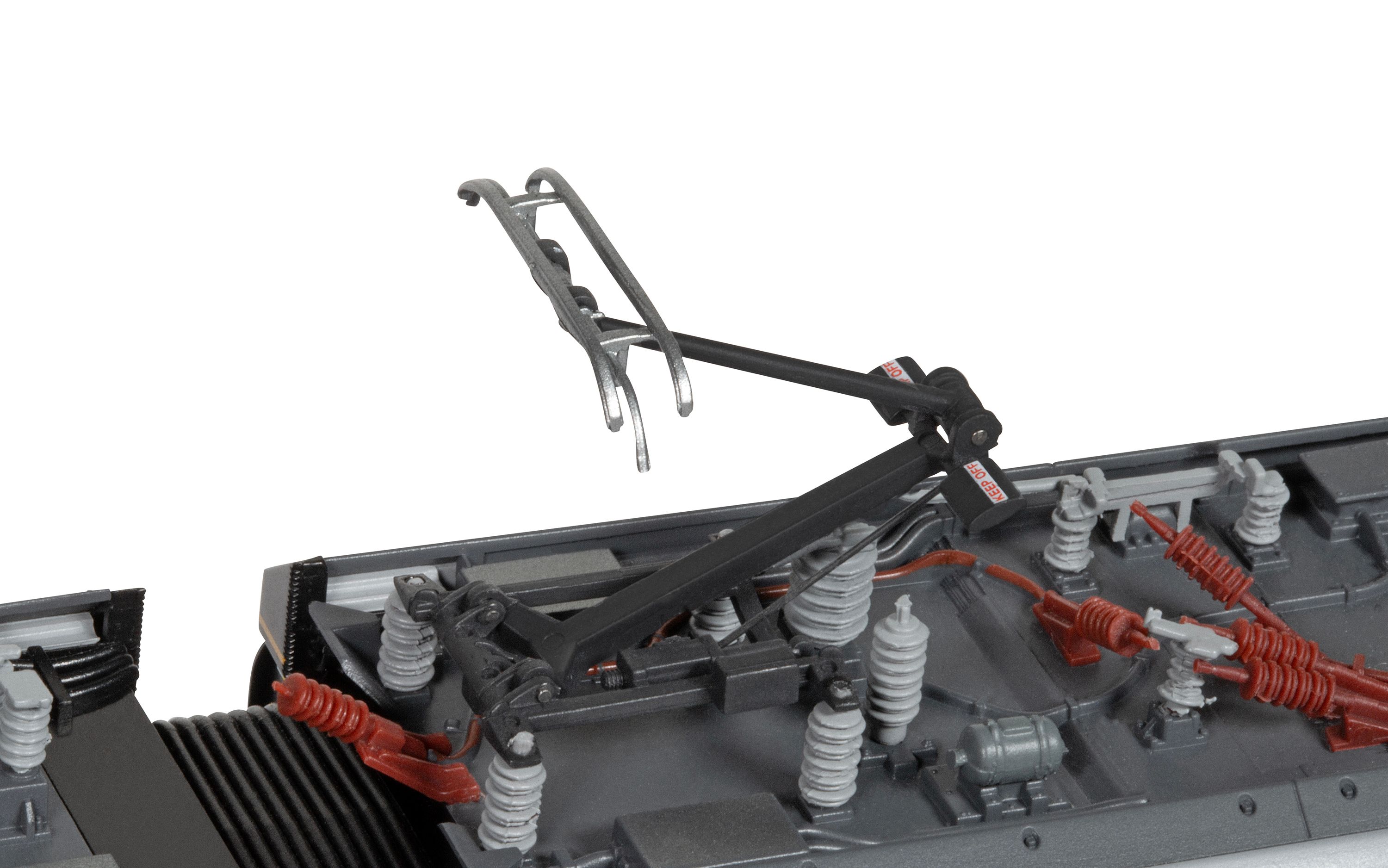

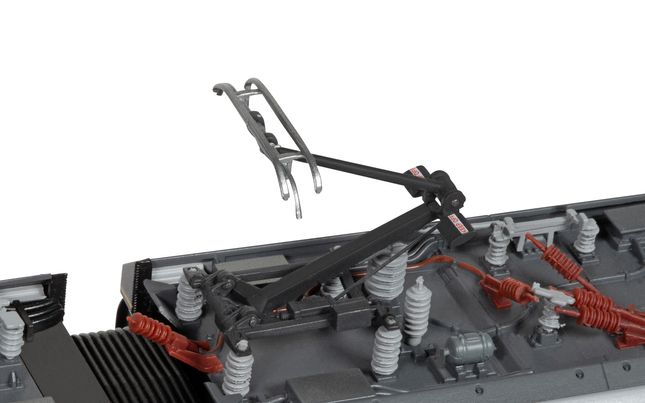

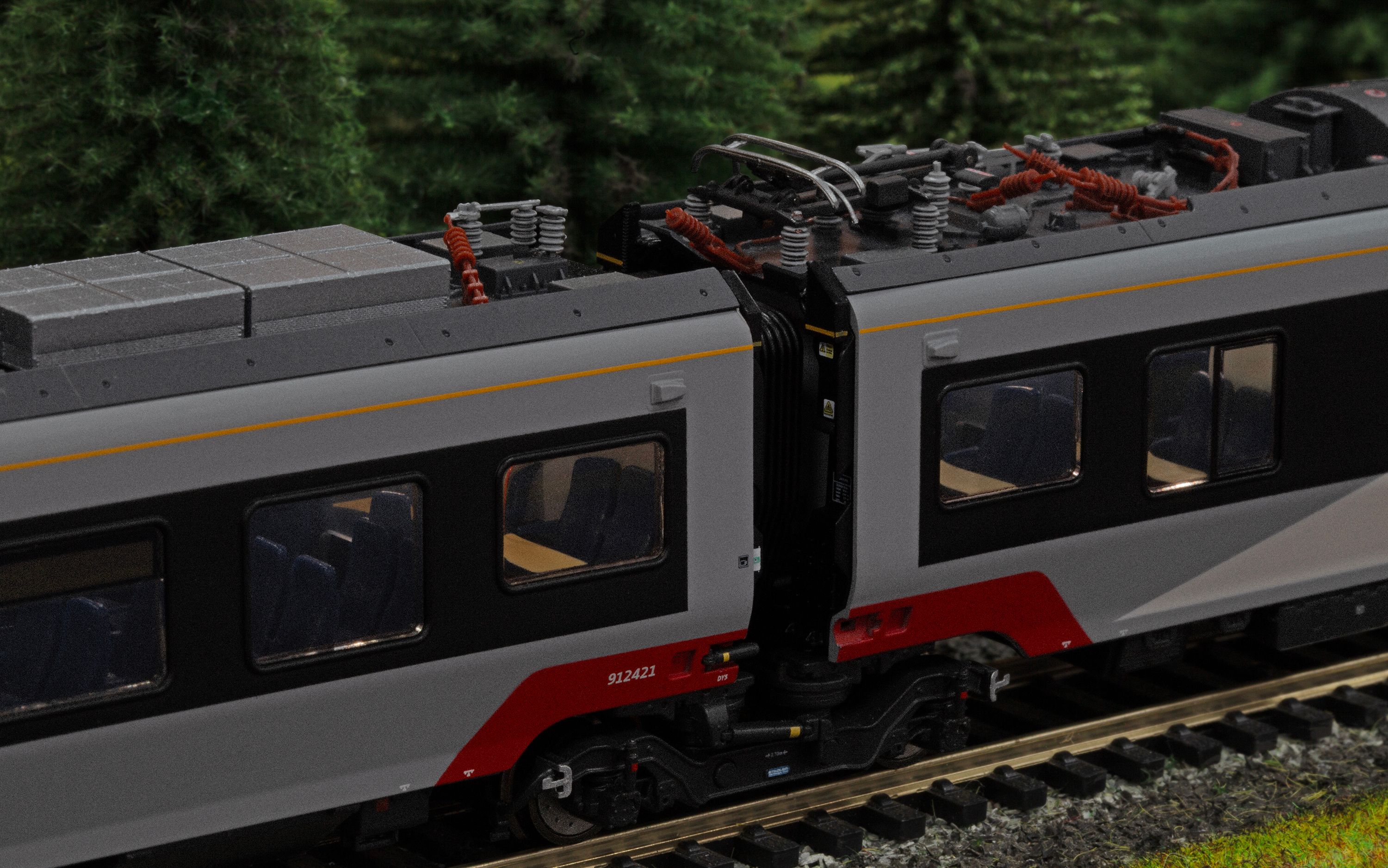

- Poseable pantographs.
SD030 – Class 755 Diesel Electric
F0 | Night Headlight/Rear Lights |
F1 | Sound Enable/Engine Start |
F2 | Multiple Horns (5) |
F3 | Multiple Horns (5) |
F4 | Brake |
F5 | Engine mode select / transition (Diesel Default) |
F6 | Detonators |
F7 | Cab Start Up |
F8 | Doors Open/Close |
F9 | AWS Warning Siren |
F10 | Air Conditioning |
F11 | Wipers |
F12 | Slow Speed Rail Clack |
F13 | Pantograph Arc |
F14 | Flange Squeal |
F15 | Cab Door |
F16 | Coupling |
F17 | Multiple Safety Announcements |
F18 | Multiple Destination Announcements |
F19 | Guards Whistle |
F20 | General Station Sounds |
F21 | Aux 1 - White Day Headlights on/off |
F22 | Aux 2 - Drivers Cab Light / Drivers Step Light on/off |
F23 | Aux 3 - Door Lights (Left Side) on/off |
F24 | Aux 4 - Door Lights (Right Side) on/off |
F25 | Shunting Mode |
F26 | Creep Mode |
F27 | Dynamic Brake |
F28 | AFC Enable |
Notes
- F6 Detonators only function if the loco is in operation between SS5 - SS75. The detonation rate will increase/decrease depending on the loco speed.
- F8 Doors Open/Close work as a toggle operation i.e F8 Doors Open playback starts when enabled and the Doors Close sound is played when the function is disabled.
- F12 Slow Speed Rail Clack - only functions if the loco is in operation between SS15 - SS25.
- F22 Drivers Cab Light / Drivers Step Light - Only illuminates when the loco is stationary.
- F22 Drivers Cab Light / Drivers Step Light - Only illuminates when the loco is stationary.
- F24 Door Lights (Right Side) on/off - toggle operation. i.e Doors open sound playback starts, and right-side door lights illuminate when enabled. Doors closed sound playback starts and right-side door lights switch off when disabled. Only operates whilst the train is stationary.
Welcome to the HM7000 Control System
HM7000 is an innovative way of controlling and operating model railways. Combining Bluetooth® technology and app-based control, the HM7000 Control System has been designed to revolutionise the controlling of a model railway.
Learn more
- Bluetooth® Connectivity
- Free Sounds
- Quick CV Editing
- Multiple Control Options
- 40+ Profile Settings
- Other Options
Upgrade Paths
Previous Control Systems can be upgraded to HM7000, see below for the options and upgrade paths available.
-
Train Set > HM7000
Already have a locomotive but want to go digital? Click here to discover how.
-
HM6000 > HM7000
The HM6000 system is only a short step away from having HM7000. Click here to discover how.
-
HM|DC > HM7000
New to the hobby? HM7000 is just a short step away. Click here to discover how.
-
DCC > HM7000
Already operating a layout using DCC? HM7000 is just a short step away. Click here to discover how.
-
Conventional DCC Controller > HM7000
Locomotives fitted with either a Hornby HM7000 or conventional decoders can be operated using the HM|DCC Bluetooth® system - click here to learn how.
The following points must be considered below when purchasing. HM | DCC and the HM7000 decoders have been extensively tested up to a range of 45 metres in plastic bodied locomotives and up to 12 metres in die-cast bodied locomotives. HM | DCC and the HM7000 decoders have been extensively tested up to a max of 14 non-stationary, running locomotives. HM | DCC and the HM7000 decoders have been extensively tested on iOS devices dating as far back as 5 years from today's date. Any devices older than this cannot be commented on for proper function by Hornby Hobbies. Please ensure that the incompatibility list is considered prior to any purchase.
What's Inside
Recommended For You
Tech Specs
- Item Length - Without Packaging (cm)
- 100
- Item Height - Without Packaging (cm)
- 5.5
- Item Width - Without Packaging (cm)
- 3.5
- Item Weight - Without Packaging (kg)
- 3.2
- Item Scale
- 1:76 Scale 00 Gauge
- DCC Status
- DCC Ready 21 pin socket
- Operator
- Greater Anglia
- Designer
- Stadler Rail
- Minimum Curve (mm)
- Radius 2
- Number of Parts
- 5
- Buffer Type
- No Buffers
- Coupling Type
- Non-NEM Pockets
Detailed scale model. Not suitable for children under 14 years. Please refer to safety notes in enclosed instruction leaflet. Colours and contents may differ from those illustrated. Please retain these details and the address for future reference.
