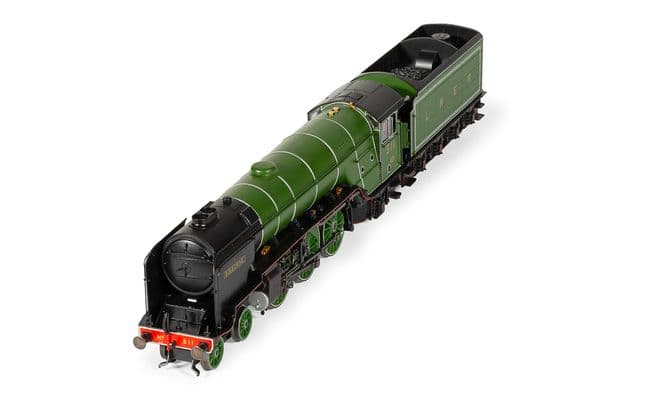

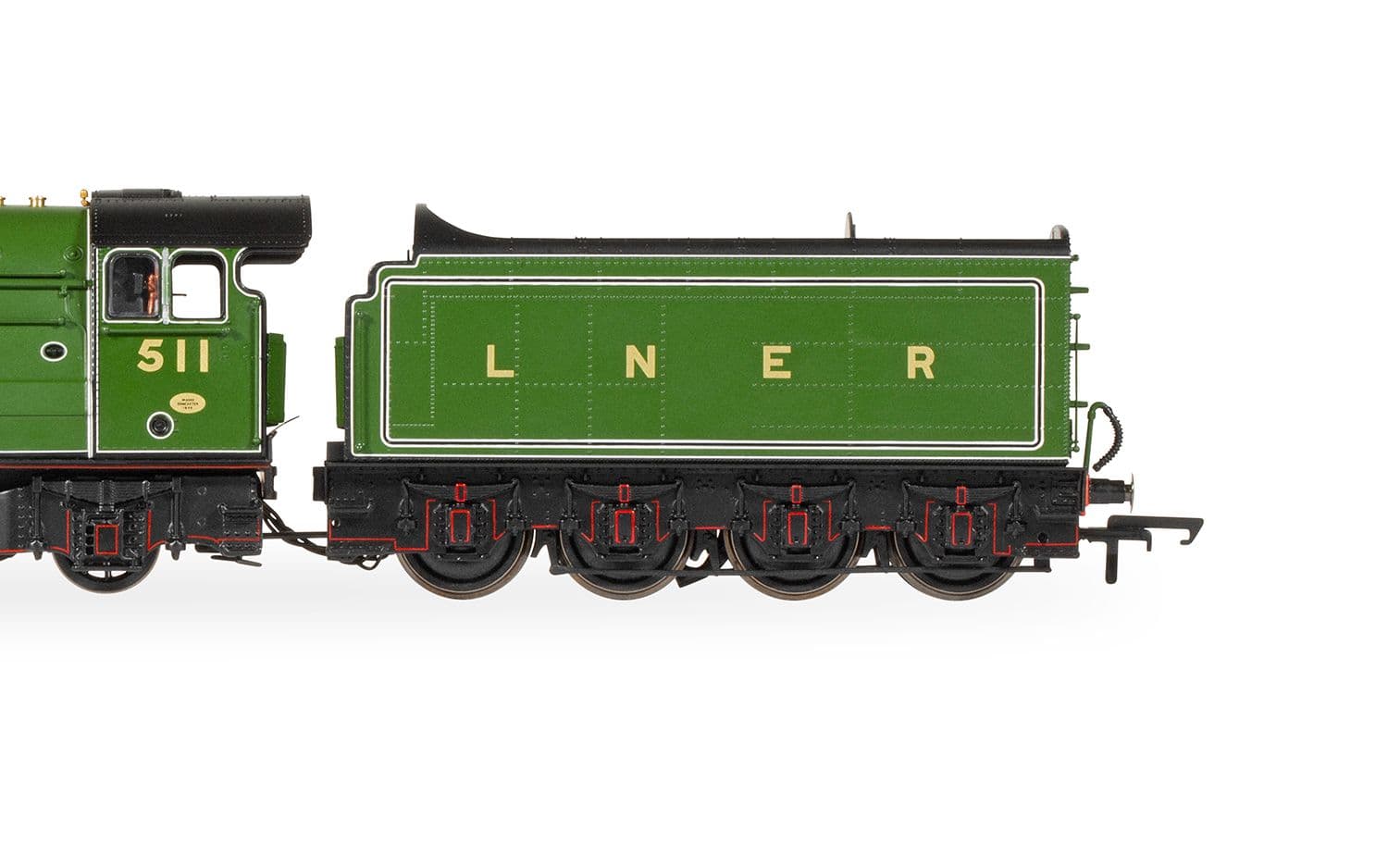

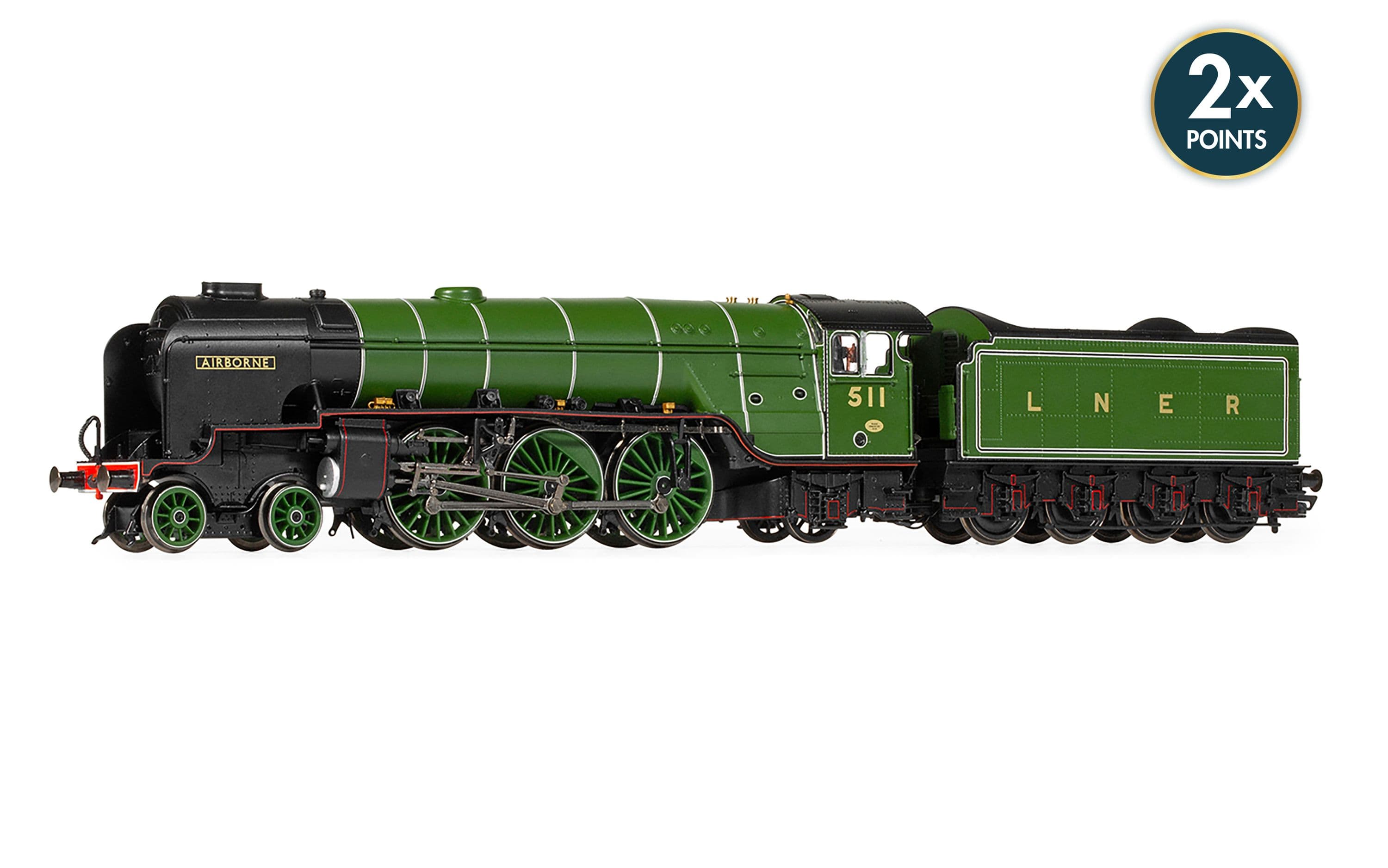

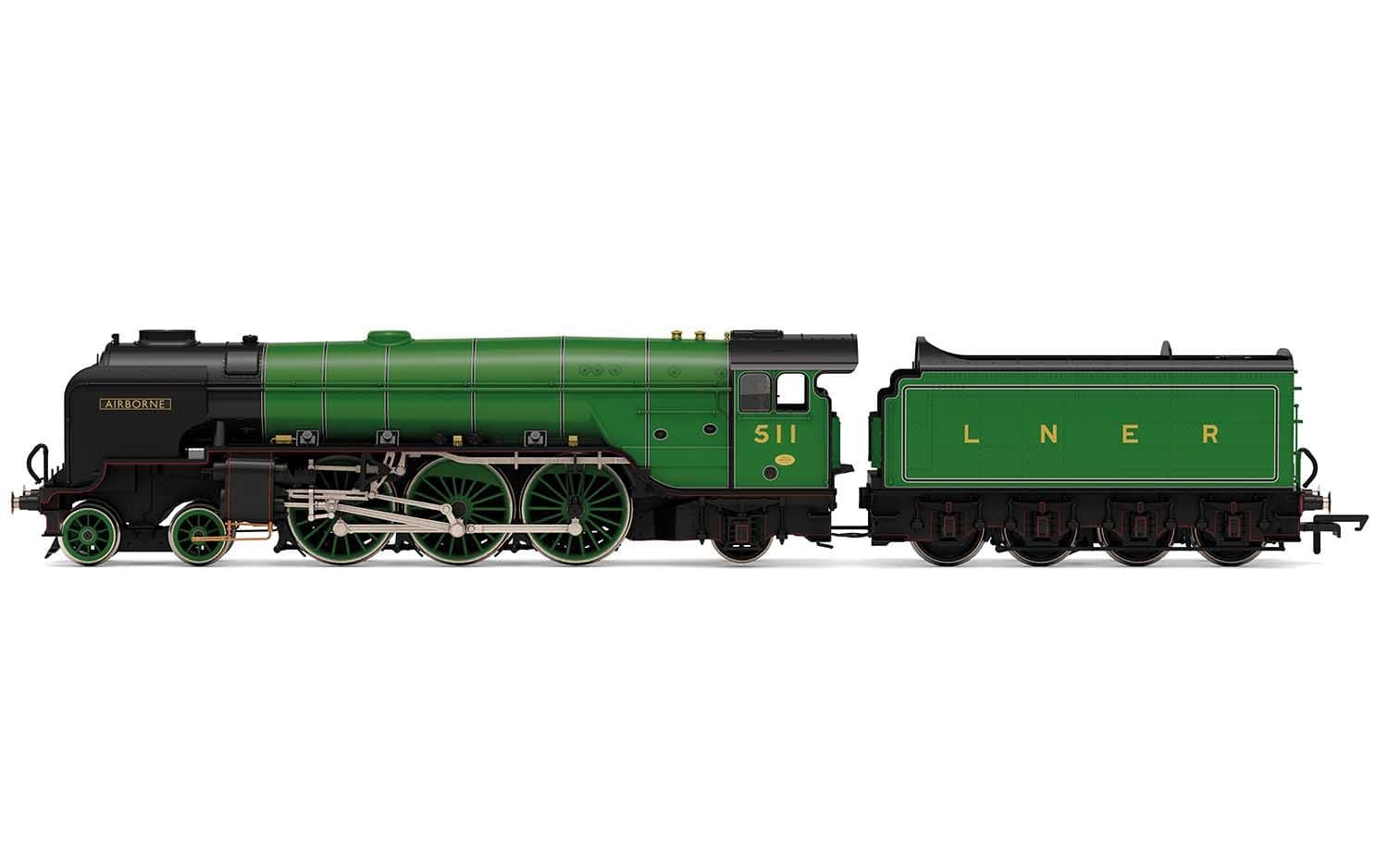

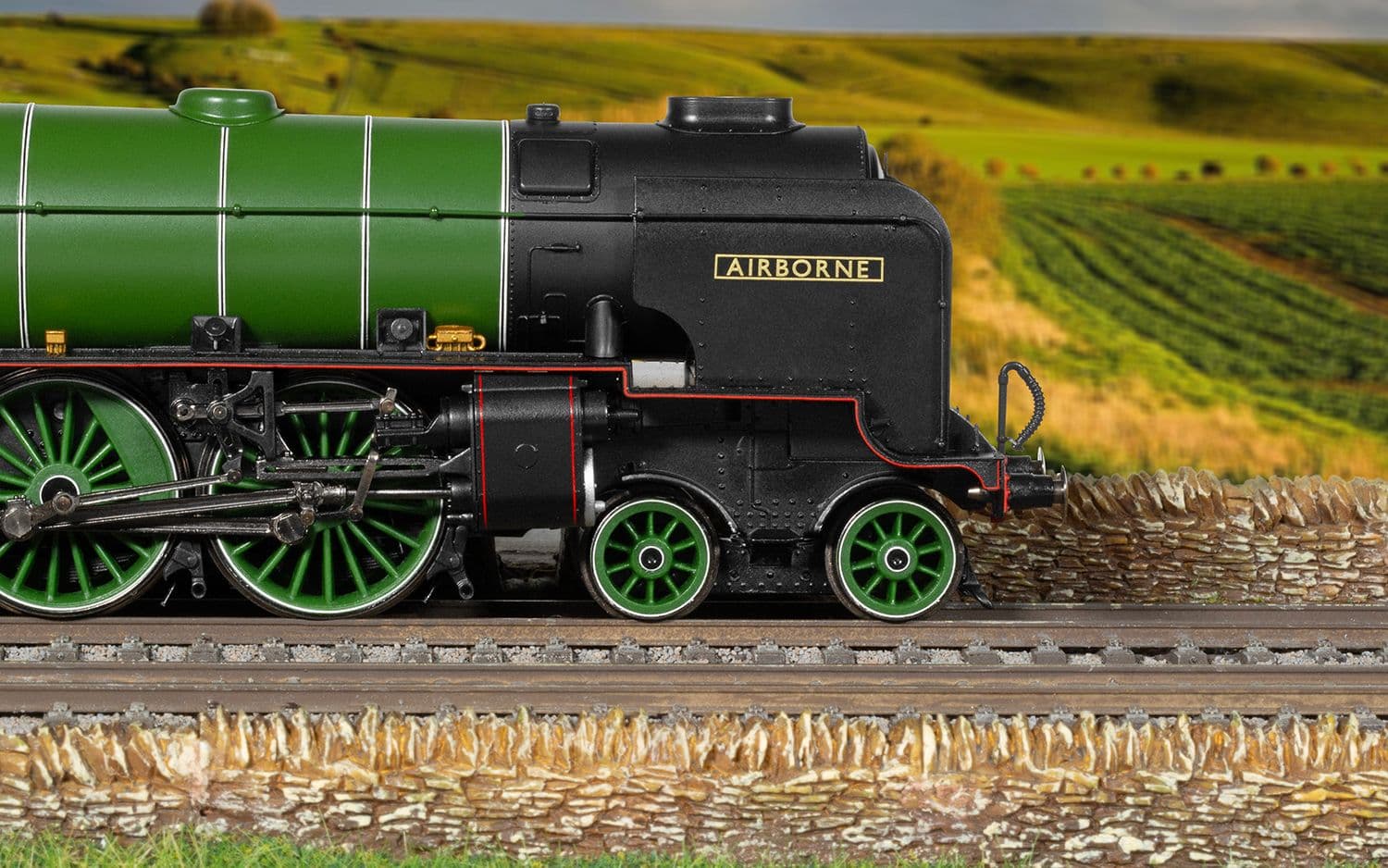

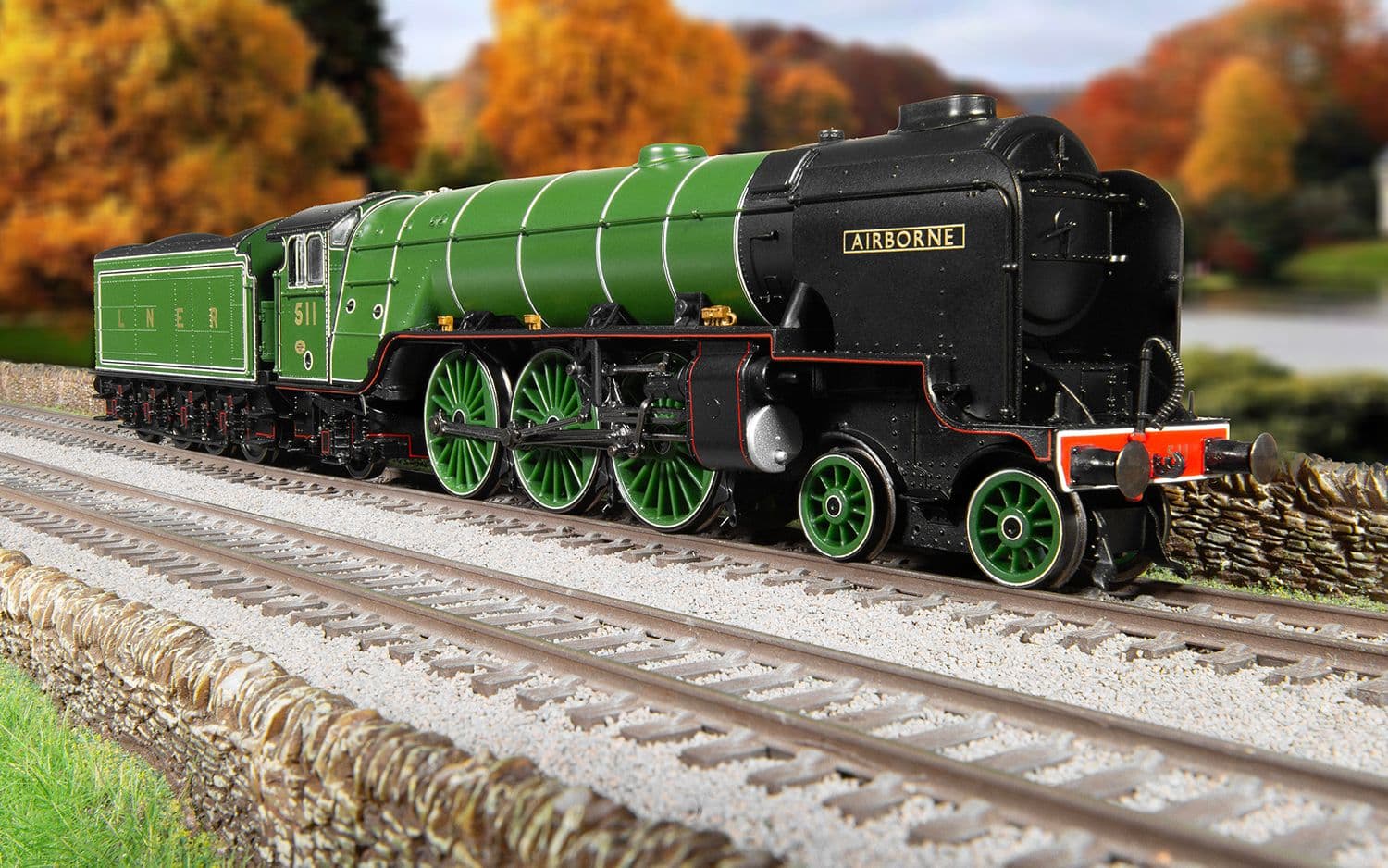

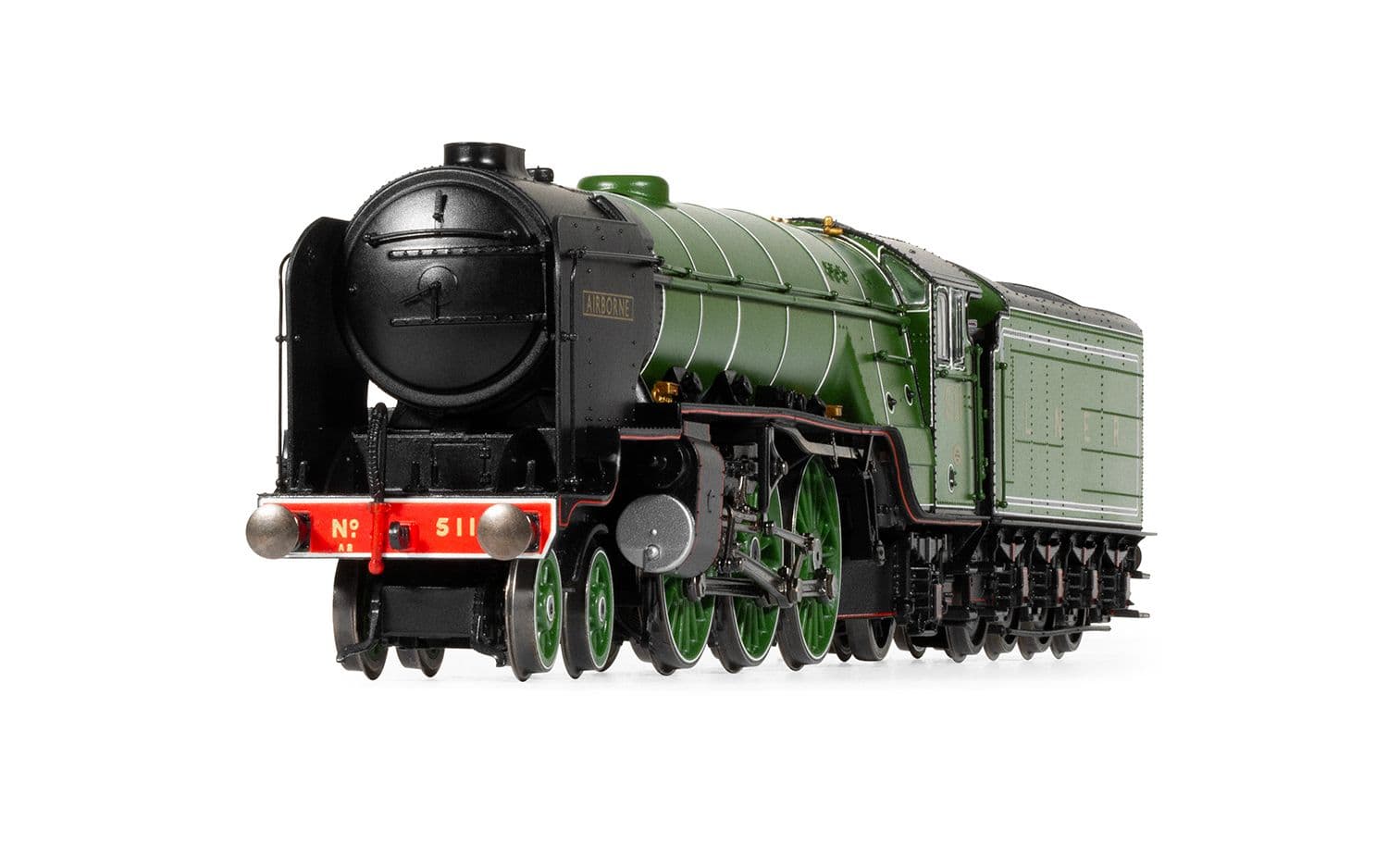

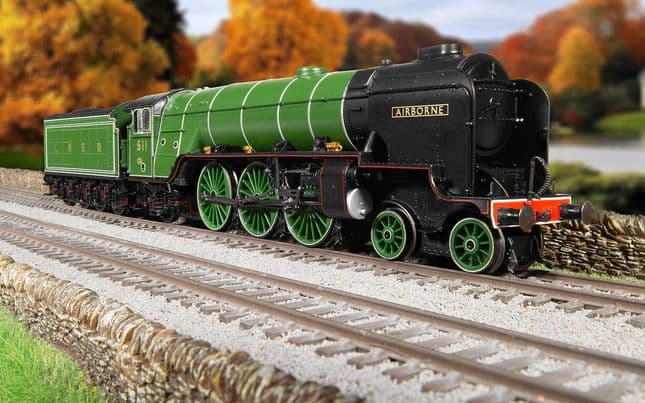

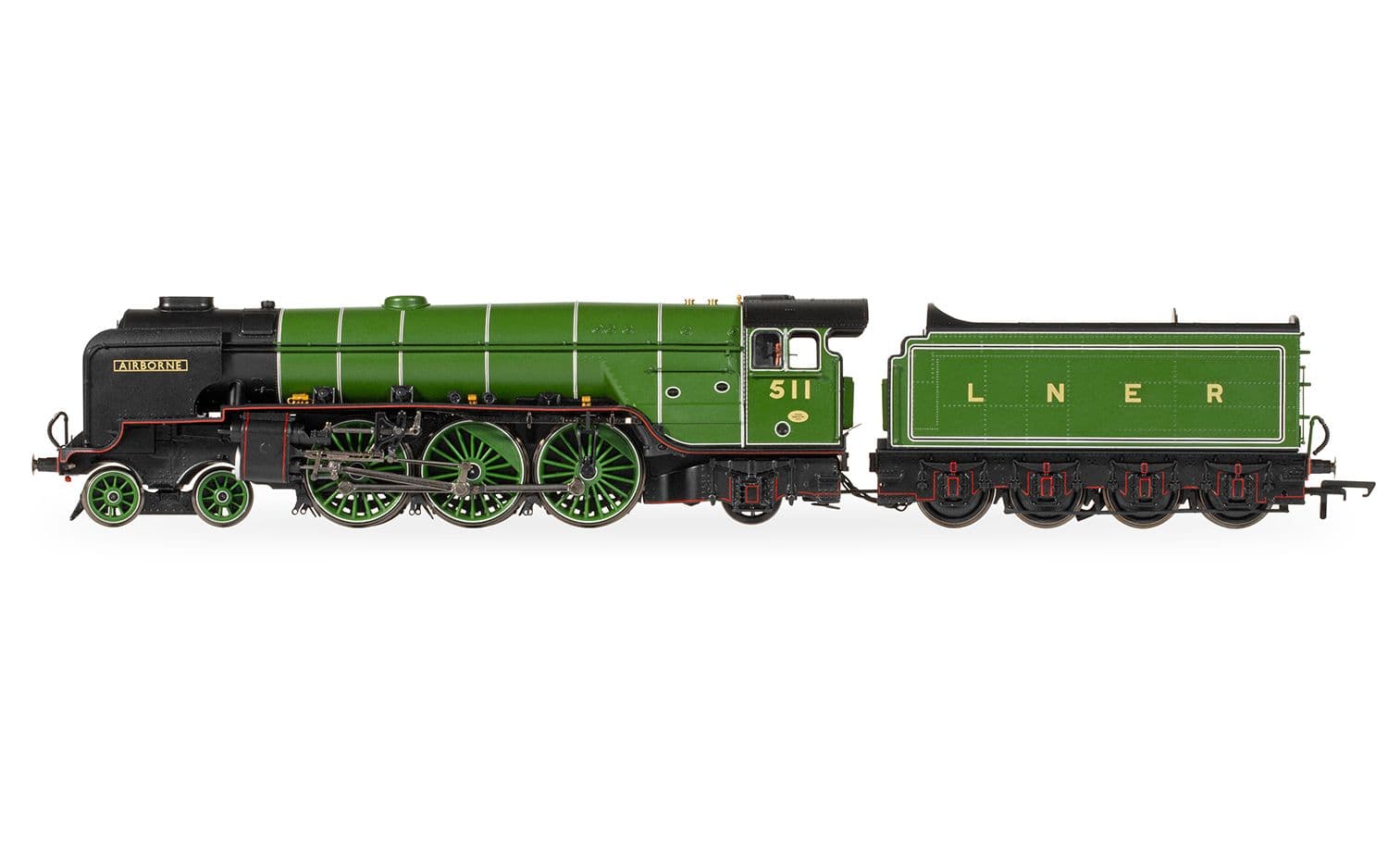

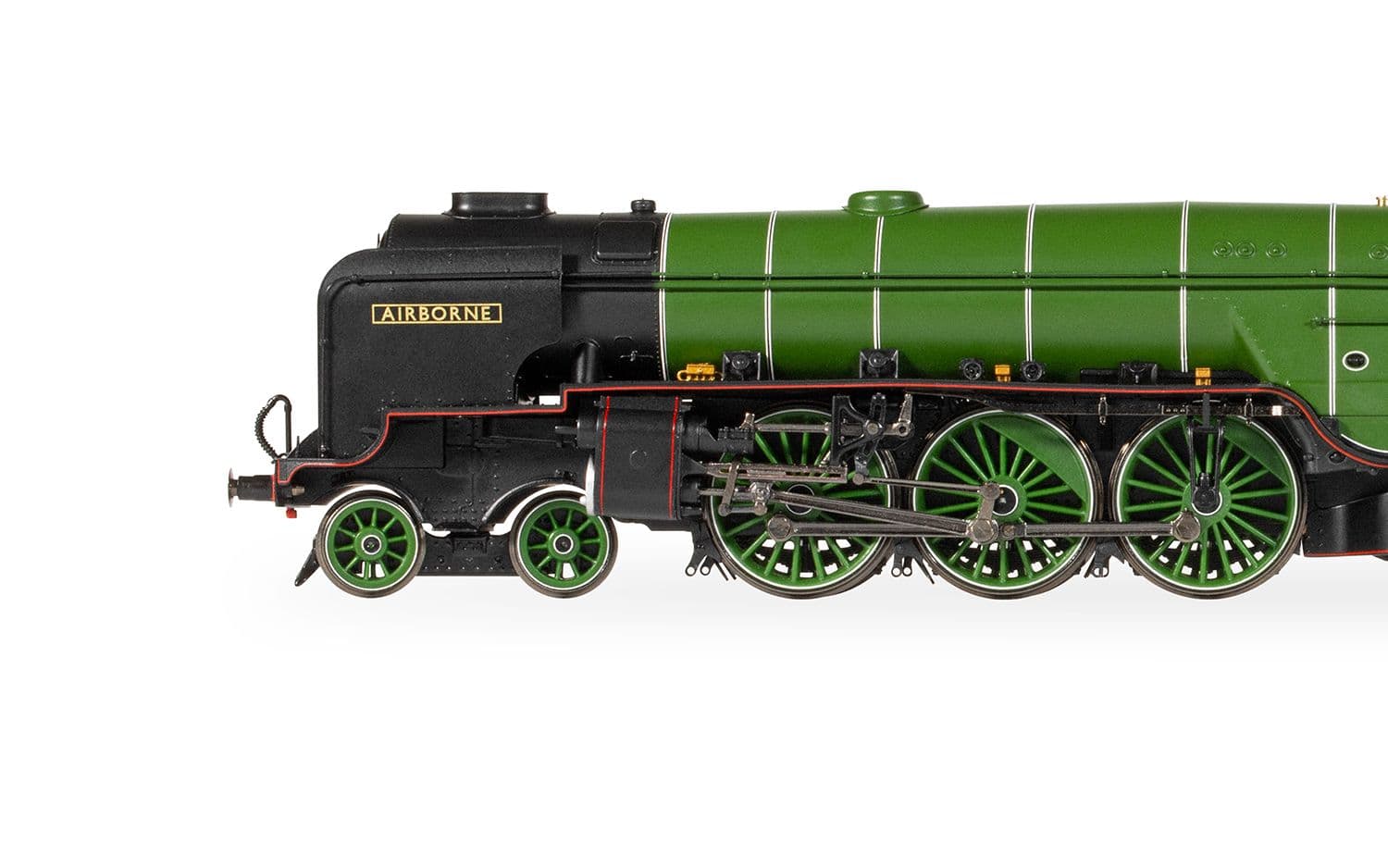

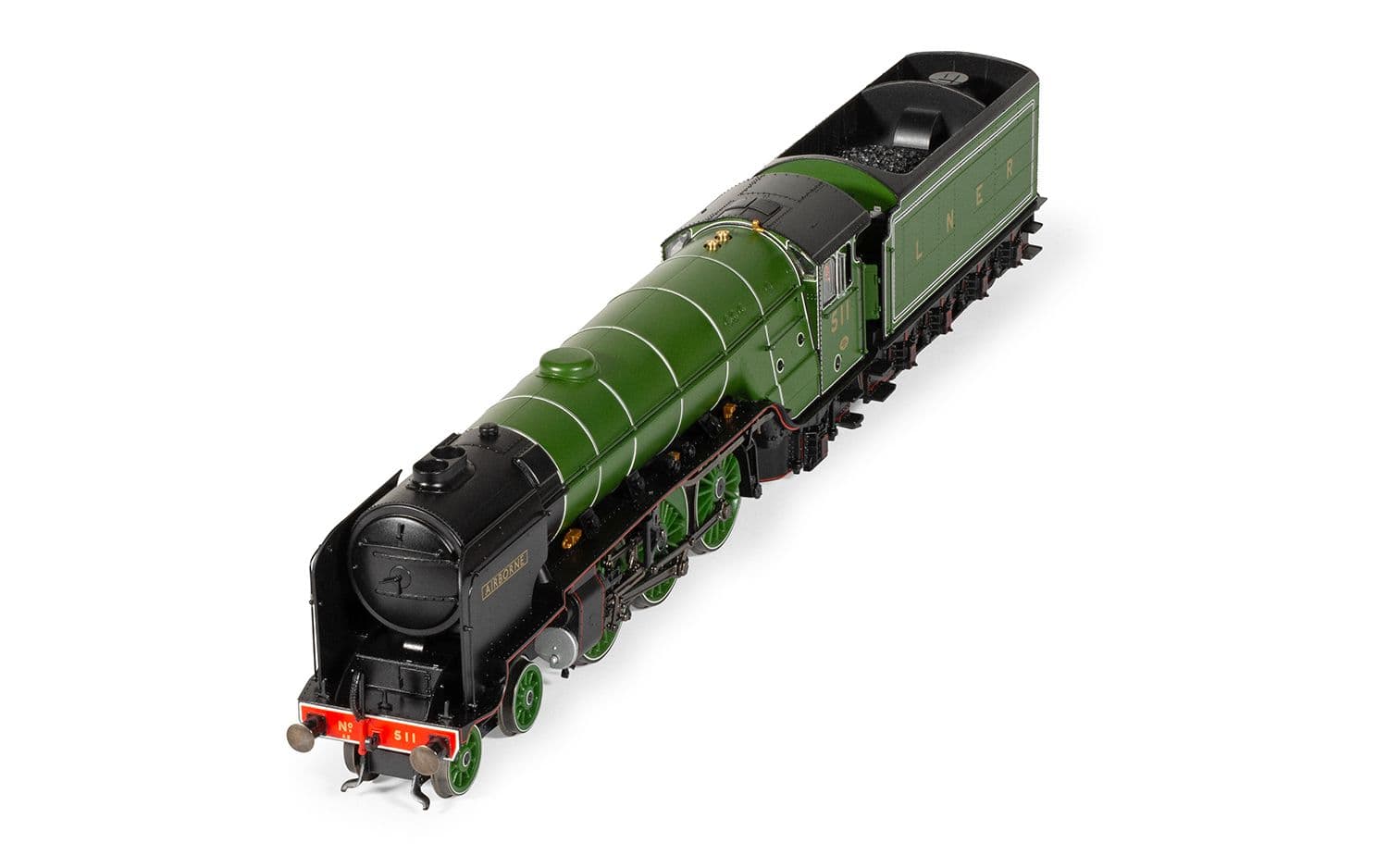

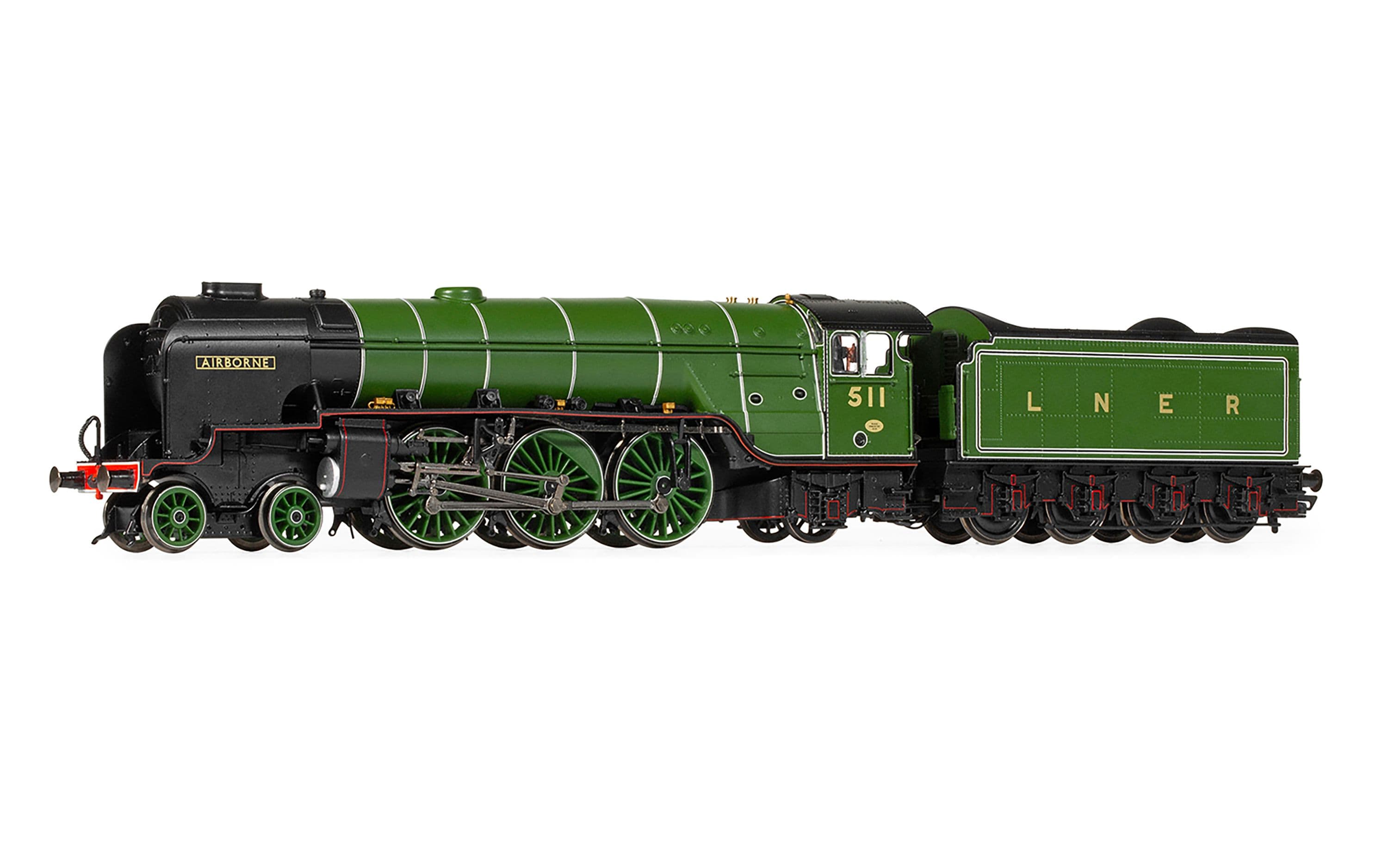

R3974 LNER, Thompson Class A2/3, 4-6-2, 511 'Airborne' - Era 3
Product Info
The A2/3 Class were designed by Edward Thompson as standard express passenger locomotives. After Sir Nigel Gresley's unexpected death in April 1941, Edward Thompson desired to standardise the locomotives of the LNER. This process involved rebuilding locomotives using standard components such as wheel sizes and boiler designs.
The A2/3 Class were new built to a similar specification to the A2/2 rebuilds, differing in cylinder sizes and boiler pressure. Thompson advocated divided drive, a system in which the middle cylinder drove the forward two of the six driving wheels whilst the outside cylinders drove the middle two. Due to his quest for standardisation, this arrangement necessitated the middle cylinder to be placed further forward than normal and the outside cylinders further back, behind the leading bogie, so that standard connecting rods could be used for all cylinders.
LNER No. 511 'Airbourne' was built at Doncaster Works and entered service in July 1946. After nationalisation, it was renumbered 60511 and assigned to the Heaton engine shed. It was withdrawn in November 1962.
Welcome to the HM7000 Control System
HM7000 is an innovative way of controlling and operating model railways. Combining Bluetooth® technology and app-based control, the HM7000 Control System has been designed to revolutionise the controlling of a model railway.
Learn more
- Bluetooth® Connectivity
- Free Sounds
- Quick CV Editing
- Multiple Control Options
- 40+ Profile Settings
- Other Options
Upgrade Paths
Previous Control Systems can be upgraded to HM7000, see below for the options and upgrade paths available.
-
Train Set > HM7000
Already have a locomotive but want to go digital? Click here to discover how.
-
HM6000 > HM7000
The HM6000 system is only a short step away from having HM7000. Click here to discover how.
-
HM|DC > HM7000
New to the hobby? HM7000 is just a short step away. Click here to discover how.
-
DCC > HM7000
Already operating a layout using DCC? HM7000 is just a short step away. Click here to discover how.
-
Conventional DCC Controller > HM7000
Locomotives fitted with either a Hornby HM7000 or conventional decoders can be operated using the HM|DCC Bluetooth® system - click here to learn how.
The following points must be considered below when purchasing. HM | DCC and the HM7000 decoders have been extensively tested up to a range of 45 metres in plastic bodied locomotives and up to 12 metres in die-cast bodied locomotives. HM | DCC and the HM7000 decoders have been extensively tested up to a max of 14 non-stationary, running locomotives. HM | DCC and the HM7000 decoders have been extensively tested on iOS devices dating as far back as 5 years from today's date. Any devices older than this cannot be commented on for proper function by Hornby Hobbies. Please ensure that the incompatibility list is considered prior to any purchase.
What's Inside
Recommended For You
Tech Specs
- Item Length - Without Packaging (cm)
- 29.5
- Item Height - Without Packaging (cm)
- 5
- Item Width - Without Packaging (cm)
- 3.5
- Item Weight - Without Packaging (kg)
- 0.36
- Item Scale
- 1:76 Scale 00 Gauge
- License
- No
- DCC Status
- DCC Ready 21 pin socket
- Operator
- LNER
- Designer
- Thompson
- Wheel Configuration
- 4-6-2
- Minimum Curve (mm)
- Radius 2
- Number of Parts
- 1
WARNING! Not suitable for children under 36 months it contains small parts which can present a choking hazard and some components have functional sharp points and edges. Handle with care. Before giving the Toy to a child remove all packaging and any other component which is not part of the toy. Colour and contents may differ from those illustrated. Please retain these details and the address for future reference.
