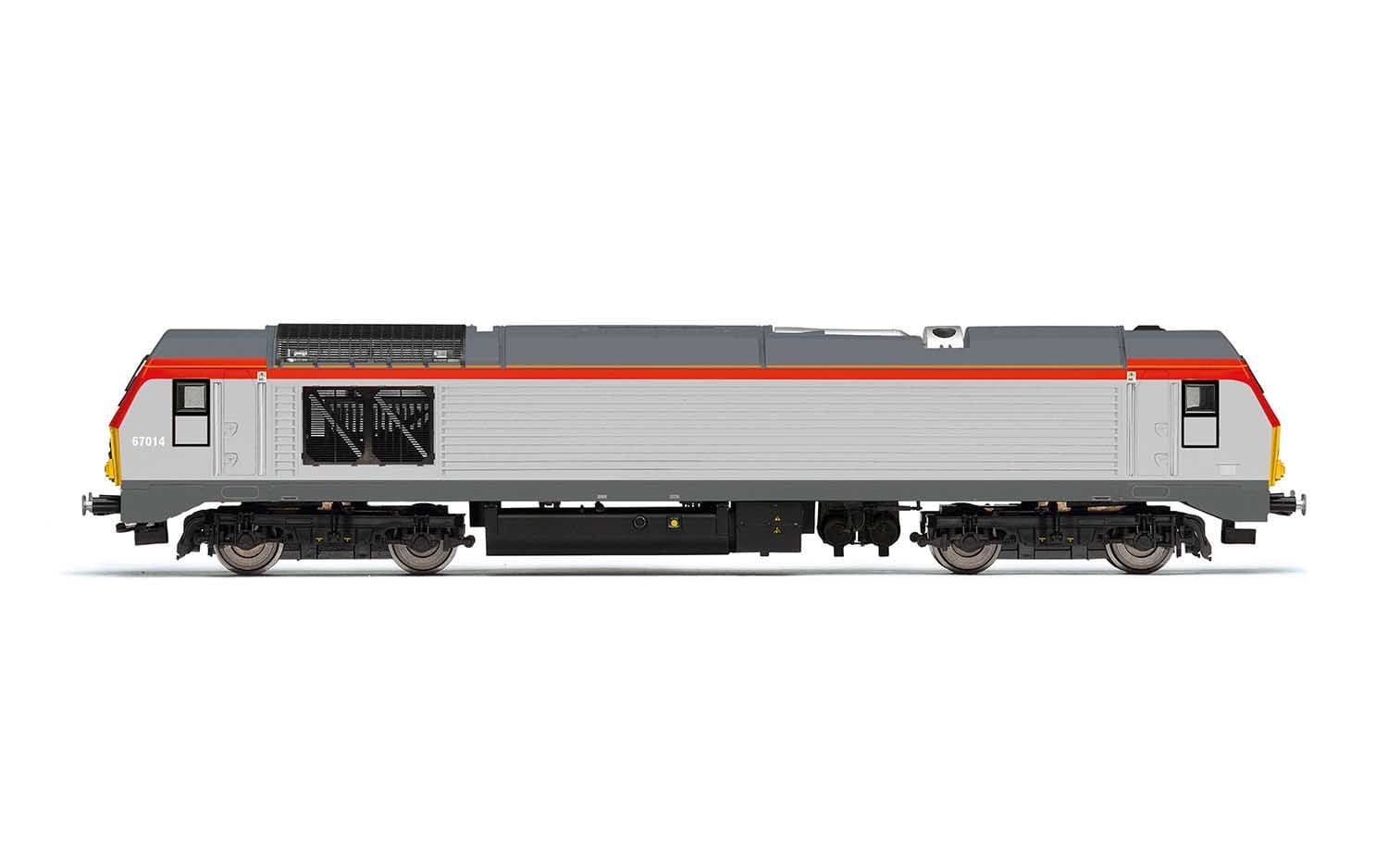

R30089 Transport for Wales, Class 67, Bo-Bo, 67014 - Era 11
Product Info
A total of thirty Class 67 locomotives were built between 1999 and 2000 by Alstom, in Spain, for English, Welsh & Scottish Railway (EWS). These Bo-Bo configured diesel electric locomotives have a large fuel capacity, electro-pneumatic brakes and a top speed of 125mph (200km/h).
The bodyshell is a monocoque load bearing Alstom design, whilst the bogies, also designed by Alstom, are of an 'H' frame design. The engine, traction motors and control electronics are the same as those used in the Class 66, but differ in that the traction motors are frame mounted, rather than axle hung, to reduce unsprung mass. The gear ratios have also been increased, allowing higher speeds and the cab is designed around a central driving position. The Class 67 locomotives are able to supply electric head-end power for passenger train heating and air-conditioning and are equipped for buffer and screw coupling, as well as also coupling via a buckeye coupler, attached on a swing arm mount. Locomotive number 67014 was built in March 2000 for EWS.
In 2008 the locomotive was repainted silver and grey and operated for Wrexham & Shropshire under the name 'Thomas Telford'. The locomotive also operated Chiltern Railways services before eventually being repainted into its current Transport for Wales livery and preforming services hauling a rake of Mk4 coaches.
Welcome to the HM7000 Control System
HM7000 is an innovative way of controlling and operating model railways. Combining Bluetooth® technology and app-based control, the HM7000 Control System has been designed to revolutionise the controlling of a model railway.
Learn more- Bluetooth® Connectivity
- Free Sounds
- Quick CV Editing
- Multiple Control Options
- 40+ Profile Settings
- Other Options
Upgrade Paths
Previous Control Systems can be upgraded to HM7000, see below for the options and upgrade paths available.
-
Train Set > HM7000
Already have a locomotive but want to go digital? Click here to discover how.
-
HM6000 > HM7000
The HM6000 system is only a short step away from having HM7000. Click here to discover how.
-
HM|DC > HM7000
New to the hobby? HM7000 is just a short step away. Click here to discover how.
-
DCC > HM7000
Already operating a layout using DCC? HM7000 is just a short step away. Click here to discover how.
-
Conventional DCC Controller > HM7000
Locomotives fitted with either a Hornby HM7000 or conventional decoders can be operated using the HM|DCC Bluetooth® system - click here to learn how.
HM7000 Products
The following points must be considered below when purchasing. HM | DCC and the HM7000 decoders have been extensively tested up to a range of 45 metres in plastic bodied locomotives and up to 12 metres in die-cast bodied locomotives. HM | DCC and the HM7000 decoders have been extensively tested up to a max of 14 non-stationary, running locomotives. HM | DCC and the HM7000 decoders have been extensively tested on iOS devices dating as far back as 5 years from today's date. Any devices older than this cannot be commented on for proper function by Hornby Hobbies. Please ensure that the incompatibility list is considered prior to any purchase.
What's Inside
Recommended For You
Tech Specs
- Item Length - Without Packaging (cm)
- 25.9
- Item Height - Without Packaging (cm)
- 5.9
- Item Width - Without Packaging (cm)
- 11.2
- Item Weight - Without Packaging
- 0.87
- Item Scale
- 1:76 Scale 00 Gauge
- License
- No
- Finish
- Painted
- Colour
- Grey
- Gauge
- OO
- DCC Status
- DCC Ready 8 pin socket
- Operator
- Transport for Wales
- Designer
- Alstom
- Livery
- TFW Grey
- Minimum Curve (mm)
- Radius 2
- Motor
- 5 Pole Skew wound
- Number of Parts
- 1
- Class
- Class 67
Detailed scale model. Not suitable for children under 14 years. Please refer to safety notes in enclosed instruction leaflet. Colours and contents may differ from those illustrated. Please retain these details and the address for future reference.
